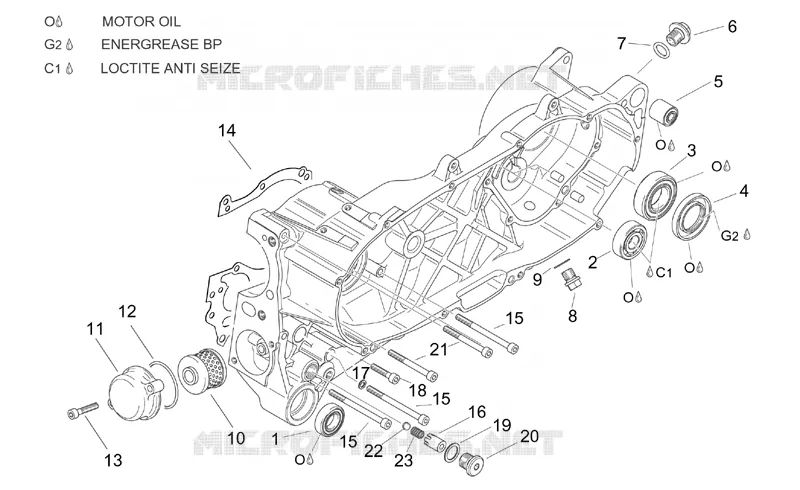

Central semi-crankcase
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
15
15
16
17
18
19
20
21
22
23
1
Bearing 6003-2RS
AP0232621
Niet beschikbaar
2
Bearing 6302
AP0232291
Niet beschikbaar
3
Ball bearing
AP0932425
Niet beschikbaar
4
Oil seal 30x52x7
AP0930900
Niet beschikbaar
5
Sleeve crankcase
AP0260295
Niet beschikbaar
6
Cover m14x1,5
AP0241660
17,93€ Stukprijs incl. btw
7
O-ring 14x3,2
AP0650350
Niet beschikbaar
8
Cover M12x1,5
AP0841921
Niet beschikbaar
9
Gasket ring 12x18
AP0250640
Niet beschikbaar
10
Oil filter
AP0256450
Niet beschikbaar
11
Oil filter cover
AP0211500
Niet beschikbaar
12
O-ring
AP0430920
Niet beschikbaar
13
Hex socket screw M6x30
AP0840880
9,46€ Stukprijs incl. btw
14
Gasket
AP0650182
22,70€ Stukprijs incl. btw
15
Hex socket screw M6x80
AP0241501
Niet beschikbaar
16
Oil press valve body
AP0256482
Niet beschikbaar
17
Gasket ring 6x10
AP0230415
Niet beschikbaar
18
Hex socket screw M6x30
AP0840880
9,46€ Stukprijs incl. btw
19
Gasket ring 16x22
AP0430622
Niet beschikbaar
20
Cover m16x1,5
AP0240230
Niet beschikbaar
21
Hex socket screw M6x60
AP0240371
Niet beschikbaar
22
Ball 8,5 mm
AP0432680
17,53€ Stukprijs incl. btw
23
Compression spring 13,5
AP0239280
Niet beschikbaar
De schema's zijn uitsluitend ter informatie. Bij twijfel staan onze specialisten klaar om uw vragen te beantwoorden. Let er bij het toevoegen van een onderdeel aan uw winkelwagen op dat u de gewenste hoeveelheid selecteert. De vermelde stukprijs geldt voor één exemplaar van elk onderdeelnummer.
