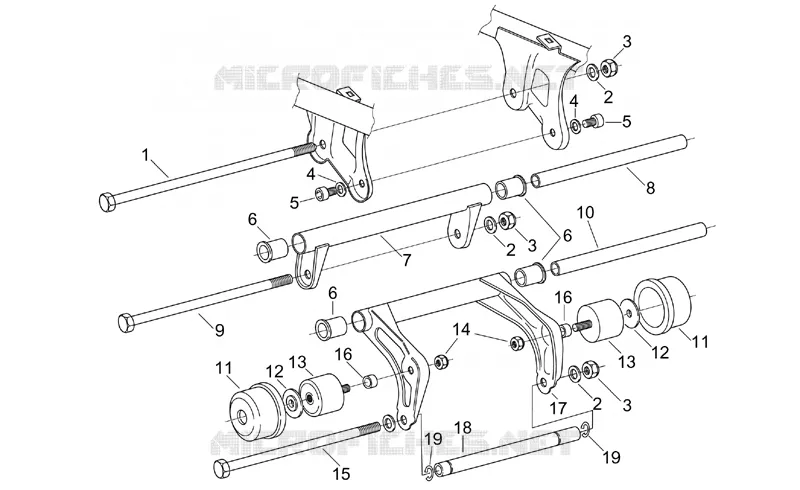

Connecting rod
1
2
2
2
3
3
3
4
4
5
5
6
6
6
7
8
9
10
11
11
12
12
13
13
14
15
16
16
17
18
19
19
1
Engine pivot pin
AP8121930
Niet beschikbaar
2
Washer 12,2x22x2
AP8152018
11,72€ Stukprijs incl. btw
3
Low self-locking nut M12*
AP8150432
4,09€ Stukprijs incl. btw
4
Curved spring washer *
AP8150210
3,06€ Stukprijs incl. btw
5
Hex socket screw M10x20
AP8150455
Niet beschikbaar
6
Resin bush
AP8102538
Niet beschikbaar
7
Frame coupling rod
AP8135850
Niet beschikbaar
8
Rod bush
AP8121975
Niet beschikbaar
9
Pin M12x270
AP8221227
32,59€ Stukprijs incl. btw
10
Rod bush
AP8121976
Niet beschikbaar
11
Stop conn.rod guard
AP8121931
Niet beschikbaar
12
T bush
AP8121214
Niet beschikbaar
13
Silent-block, connecting rod
AP8120877
Niet beschikbaar
14
Self-locking nut
AP8152301
3,94€ Stukprijs incl. btw
15
Pin M12
AP8221160
21,62€ Stukprijs incl. btw
16
Spacer 10,2x20x4
AP8121218
21,43€ Stukprijs incl. btw
17
Engine connecting element
AP8135622
Niet beschikbaar
18
Engine pivot pin bush
AP8121954
Niet beschikbaar
19
Outside circlip D17
AP8206233
Niet beschikbaar
De schema's zijn uitsluitend ter informatie. Bij twijfel staan onze specialisten klaar om uw vragen te beantwoorden. Let er bij het toevoegen van een onderdeel aan uw winkelwagen op dat u de gewenste hoeveelheid selecteert. De vermelde stukprijs geldt voor één exemplaar van elk onderdeelnummer.
