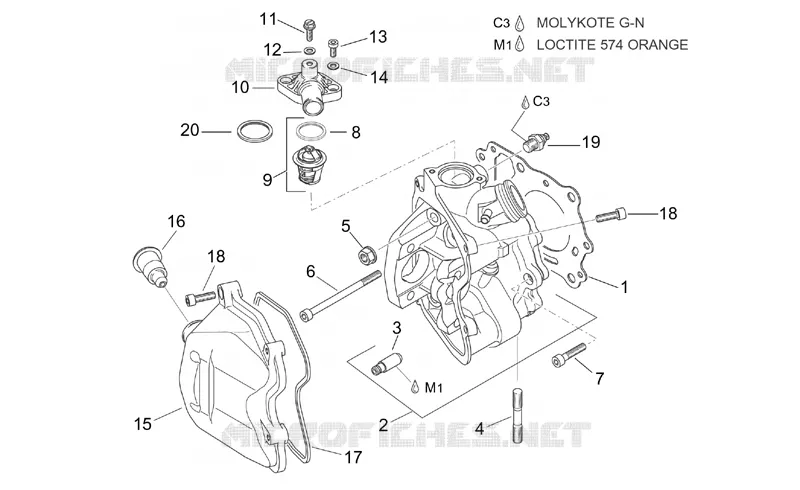

Cylinder head
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
18
19
20
1
Gasket
AP0650172
48,54€ Stukprijs incl. btw
1
Gasket
AP0650170
33,24€ Stukprijs incl. btw
2
Cylinder head assy.
AP0613110
Niet beschikbaar
3
Valve guide
AP0253811
Niet beschikbaar
4
Stud bolt
AP0240366
Niet beschikbaar
5
Nut M8
AP0842616
Niet beschikbaar
6
Hex socket screw M6x90
AP0241481
Niet beschikbaar
7
Hex socket screw M6x30
AP0840880
9,46€ Stukprijs incl. btw
8
Thermostat gasket
AP0650300
Niet beschikbaar
9
Thermostat 75°
AP0222490
Niet beschikbaar
10
Thermostat cover
AP0222470
Niet beschikbaar
11
screw
AP0941950
Niet beschikbaar
12
Gasket 5,5/11/1
AP0650250
Niet beschikbaar
13
Hex socket screw
AP0241841
Niet beschikbaar
14
Washer D14
AP0927571
4,36€ Stukprijs incl. btw
15
Valves cover
AP0211521
Niet beschikbaar
16
Oil separator
AP0256500
Niet beschikbaar
17
Valve cover gasket
AP0650230
33,55€ Stukprijs incl. btw
18
Hex socket screw M6x20
AP0241930
Niet beschikbaar
19
Temperature gauge
AP0265450
Niet beschikbaar
20
Spacer 20,5x30
AP0927835
Niet beschikbaar
De schema's zijn uitsluitend ter informatie. Bij twijfel staan onze specialisten klaar om uw vragen te beantwoorden. Let er bij het toevoegen van een onderdeel aan uw winkelwagen op dat u de gewenste hoeveelheid selecteert. De vermelde stukprijs geldt voor één exemplaar van elk onderdeelnummer.
