door

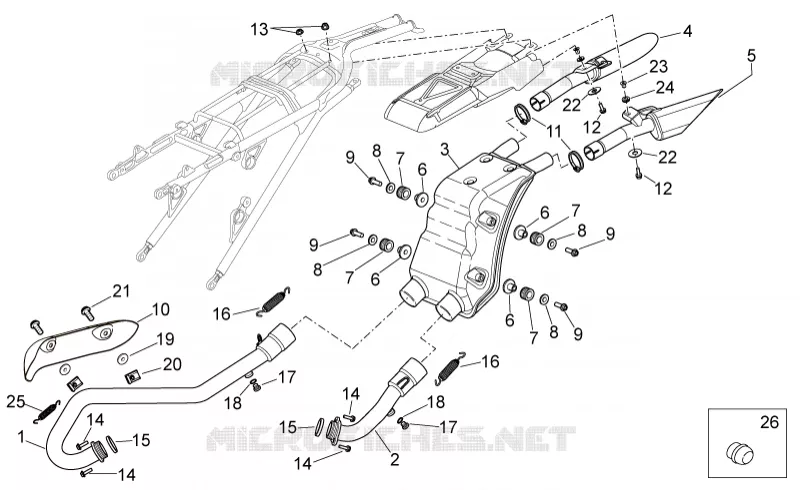

Exhaust unit
1
2
3
4
5
6
6
6
6
7
7
7
7
8
8
8
8
9
9
9
9
10
11
12
12
13
14
14
14
14
15
15
16
16
17
17
18
18
19
20
21
22
22
23
24
25
26
1
Front. Exhaust pipe
855036
553,91€ Stukprijs incl. btw
1
Front. Exhaust pipe
855037
Niet beschikbaar
2
Rear exhaust pipe
891111
Niet beschikbaar
2
Rear exhaust pipe
891110
Niet beschikbaar
2
Rear exhaust pipe
855087
Niet beschikbaar
2
Rear exhaust pipe
855026
Niet beschikbaar
3
Silencer
856941
377,40€ Stukprijs incl. btw
4
RH terminal
AP9100244
123,77€ Stukprijs incl. btw
5
LH terminal
AP9100249
Niet beschikbaar
6
Bush
AP9100409
9,80€ Stukprijs incl. btw
7
Silent-block
AP9100845
Niet beschikbaar
8
Washer 8,3x20x1,5
AP9100736
5,56€ Stukprijs incl. btw
9
Screw w/ flange M8x30
AP8152288
4,09€ Stukprijs incl. btw
10
RH exhaust pipe shield
AP9100238
43,44€ Stukprijs incl. btw
11
Hose clamp D.30
851470
21,55€ Stukprijs incl. btw
12
Screw w/ flange M6x20
AP8152279
3,74€ Stukprijs incl. btw
13
Self-locking nut M6x1
AP9100434
8,62€ Stukprijs incl. btw
14
Screw w/ flange
598839
3,07€ Stukprijs incl. btw
15
Exhaust pipe gasket
AP9100252
Niet beschikbaar
16
Spring
AP8121170
21,85€ Stukprijs incl. btw
17
CO intake screw
AP9100755
12,68€ Stukprijs incl. btw
18
Washer 10x14x1
AP8119603
18,80€ Stukprijs incl. btw
19
Insulating washer
AP8120870
Niet beschikbaar
20
Spring plate M6
254485
3,55€ Stukprijs incl. btw
21
Screw w/ flange M6x12
AP8152342
2,64€ Stukprijs incl. btw
22
Washer 6,6x18x1,6*
AP8150015
3,74€ Stukprijs incl. btw
23
T bush
AP9100302
19,51€ Stukprijs incl. btw
24
Rubber spacer
AP9100301
9,28€ Stukprijs incl. btw
25
Exhaust pipes spring
858142
Niet beschikbaar
26
Ogive
858592
Niet beschikbaar
De schema's zijn uitsluitend ter informatie. Bij twijfel staan onze specialisten klaar om uw vragen te beantwoorden. Let er bij het toevoegen van een onderdeel aan uw winkelwagen op dat u de gewenste hoeveelheid selecteert. De vermelde stukprijs geldt voor één exemplaar van elk onderdeelnummer.
