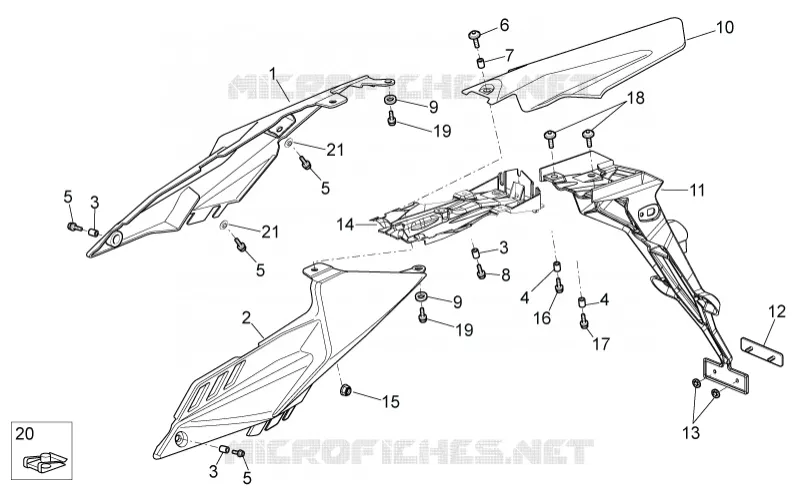

Rear body I
1
2
3
3
3
4
4
5
5
5
5
6
7
8
9
9
10
11
12
13
14
15
16
17
18
19
19
20
21
21
1
RH rear fairing, black
AP8184917
Niet beschikbaar
1
Rh rear fairing
AP8184497
Niet beschikbaar
2
Lh rear fairing
AP8184496
Niet beschikbaar
2
LH rear fairing, black
AP8184918
Niet beschikbaar
3
Bush d.10-h.3,5
AP9100053
3,55€ Stukprijs incl. btw
4
T bush *
AP8121075
3,94€ Stukprijs incl. btw
5
Screw w/ flange M6x20
AP8152279
3,74€ Stukprijs incl. btw
6
Vite TBEI M6x25
AP8152117
4,64€ Stukprijs incl. btw
7
Bush 10x7
AP9100594
5,52€ Stukprijs incl. btw
8
Screw w/ flange M6x20
AP8152279
3,74€ Stukprijs incl. btw
9
Washer 6,6x18x1,6*
AP8150015
3,74€ Stukprijs incl. btw
10
Rear mudguard
AP8156381
106,37€ Stukprijs incl. btw
11
Number plate holder
855041
Niet beschikbaar
11
Number plate holder
898847
Niet beschikbaar
12
Rear reflector
AP8112202
Niet beschikbaar
13
Washer for shafts D5
AP8150450
4,09€ Stukprijs incl. btw
14
Saddle supp.lower lockup
855046
61,36€ Stukprijs incl. btw
15
Self-locking nut M6x1
AP9100434
8,62€ Stukprijs incl. btw
16
Screw w/ flange M6x20
AP8152279
3,74€ Stukprijs incl. btw
17
Screw w/ flange M6x20
AP8152279
3,74€ Stukprijs incl. btw
18
Screw w/ flange M6x16
AP8152246
6,04€ Stukprijs incl. btw
19
Screw w/ flange M6x12
AP8152277
3,74€ Stukprijs incl. btw
20
Spring plate M6
254485
3,55€ Stukprijs incl. btw
21
Bush
AP8121032
6,02€ Stukprijs incl. btw
De schema's zijn uitsluitend ter informatie. Bij twijfel staan onze specialisten klaar om uw vragen te beantwoorden. Let er bij het toevoegen van een onderdeel aan uw winkelwagen op dat u de gewenste hoeveelheid selecteert. De vermelde stukprijs geldt voor één exemplaar van elk onderdeelnummer.
