door

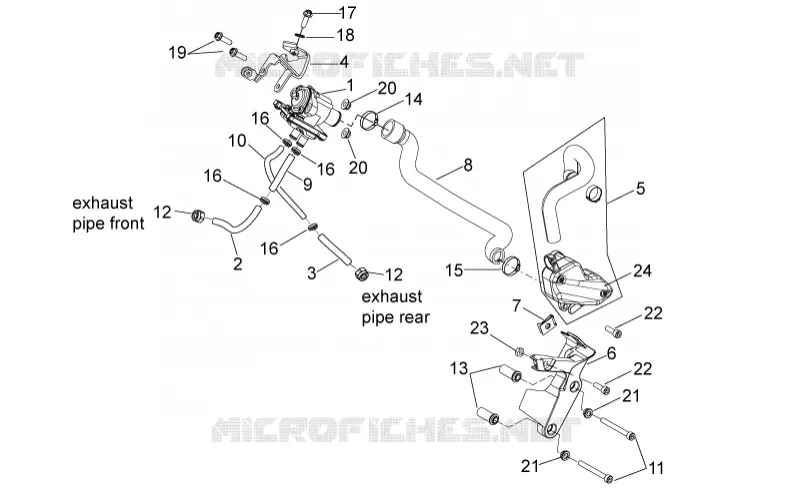

Secondary air
1
2
3
4
5
6
7
8
9
10
11
12
12
13
14
15
16
16
16
16
17
18
19
20
20
21
21
22
22
23
24
1
SAS valve
855054
172,45€ Stukprijs incl. btw
2
Front. Exhaust pipe
855023
Niet beschikbaar
3
Rear exhaust pipe
855024
51,76€ Stukprijs incl. btw
4
Valve support
855022
35,29€ Stukprijs incl. btw
5
Sas box
855057
Niet beschikbaar
6
Sas box support
855182
Niet beschikbaar
7
Spring plate M6
254485
3,55€ Stukprijs incl. btw
8
pipe
855183
53,77€ Stukprijs incl. btw
9
Front. Exhaust pipe
855055
12,40€ Stukprijs incl. btw
10
Rear exhaust pipe
855056
88,43€ Stukprijs incl. btw
11
Hex socket screw
AP8150411
10,98€ Stukprijs incl. btw
12
Nut
855028
19,32€ Stukprijs incl. btw
13
Bush
855184
Niet beschikbaar
14
Hose clip 26x8
AP9100456
5,52€ Stukprijs incl. btw
15
Hose clip
AP8102273
4,46€ Stukprijs incl. btw
16
Hose clip D.15,5x6,6
AP8101586
6,12€ Stukprijs incl. btw
17
Hex socket screw M6x16
AP8150137
3,06€ Stukprijs incl. btw
18
Washer 6,6x18x1,6*
AP8150015
3,74€ Stukprijs incl. btw
19
Screw w/ flange M6x20
AP8152279
3,74€ Stukprijs incl. btw
20
Self-locking nut M6x1
AP9100434
8,62€ Stukprijs incl. btw
21
Bush
AP8221129
4,48€ Stukprijs incl. btw
22
Hex socket screw M6x20
AP8150160
Niet beschikbaar
23
Nut M6
AP8150026
2,77€ Stukprijs incl. btw
24
Valve cover sas
856897
Niet beschikbaar
De schema's zijn uitsluitend ter informatie. Bij twijfel staan onze specialisten klaar om uw vragen te beantwoorden. Let er bij het toevoegen van een onderdeel aan uw winkelwagen op dat u de gewenste hoeveelheid selecteert. De vermelde stukprijs geldt voor één exemplaar van elk onderdeelnummer.
