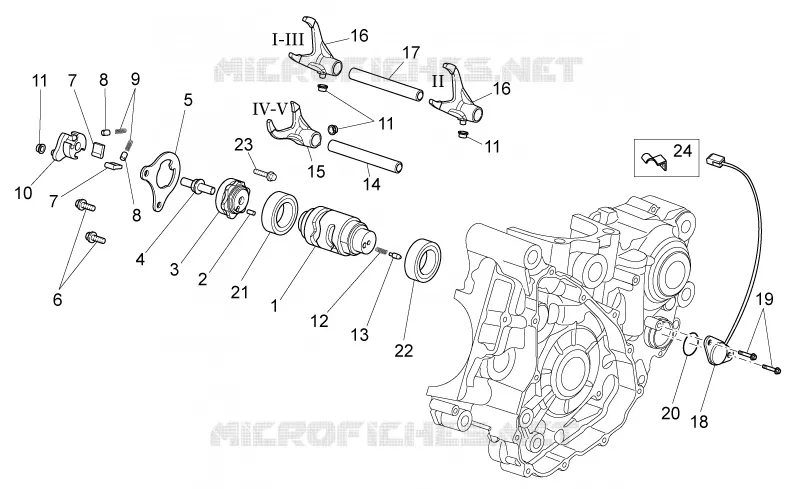

Gear box selector II
1
2
3
4
5
6
7
7
8
8
9
10
11
11
11
12
13
14
15
16
16
17
18
19
20
21
22
23
24
1
Shift cam cpl.
AP9150004
195,05€ Stukprijs incl. btw
2
Roller D4
AP9150375
24,83€ Stukprijs incl. btw
3
Selector drum
AP9150067
99,72€ Stukprijs incl. btw
4
Threaded pin M8x1,25
AP9150043
Niet beschikbaar
5
Selector lock plate
AP9150073
25,14€ Stukprijs incl. btw
6
Screw w/ flange M6x12
AP8152277
3,74€ Stukprijs incl. btw
7
Lever
AP9150069
10,48€ Stukprijs incl. btw
8
Spring pillar
AP9150070
17,17€ Stukprijs incl. btw
9
Spring
AP9150064
15,67€ Stukprijs incl. btw
10
Shift cam plate
AP9150068
51,00€ Stukprijs incl. btw
11
Bushing D6x8x5
AP9150060
17,11€ Stukprijs incl. btw
12
Spring
855705
Niet beschikbaar
13
Spring pillar
AP9150003
10,48€ Stukprijs incl. btw
14
Fork shaft L72,5
AP9150062
141,37€ Stukprijs incl. btw
15
Fork 4a-5a
AP9150093
Niet beschikbaar
16
Fork 1a-3a
AP9150091
117,76€ Stukprijs incl. btw
17
Fork shaft L93
AP9150061
34,20€ Stukprijs incl. btw
18
Gearbox sensor
AP9150184
Niet beschikbaar
19
Screw w/ flange M5x12
AP8152272
3,74€ Stukprijs incl. btw
20
O-ring D23,52x1,78
AP9150479
5,21€ Stukprijs incl. btw
21
Ball bearing D25x42x9
AP9150365
44,28€ Stukprijs incl. btw
22
Ball bearing D25x37x7
85104R
37,69€ Stukprijs incl. btw
23
Screw w/ flange M5x12
AP8152272
3,74€ Stukprijs incl. btw
24
Fairlead
AP9150462
12,82€ Stukprijs incl. btw
De schema's zijn uitsluitend ter informatie. Bij twijfel staan onze specialisten klaar om uw vragen te beantwoorden. Let er bij het toevoegen van een onderdeel aan uw winkelwagen op dat u de gewenste hoeveelheid selecteert. De vermelde stukprijs geldt voor één exemplaar van elk onderdeelnummer.
