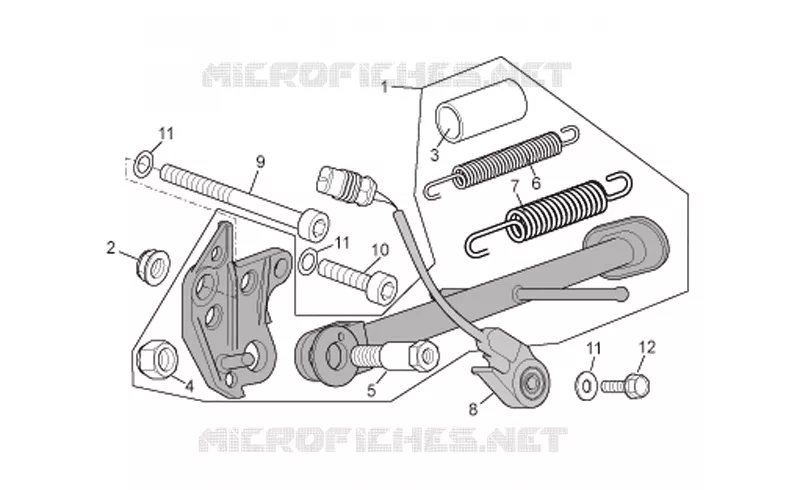

Central stand
1
2
3
4
5
6
7
8
9
10
11
11
11
12
1
Stand cpl.
AP8145055
Niet beschikbaar
1
Stand cpl.
AP8146732
Niet beschikbaar
1
Stand cpl.
AP8146944
Niet beschikbaar
2
Self-locking nut
AP8152301
3,94€ Stukprijs incl. btw
3
Stand spring protection
AP8102524
28,44€ Stukprijs incl. btw
4
Low self-locking nut M10x1,25
AP8150480
7,25€ Stukprijs incl. btw
4
Low nut M10x1,25
AP8152001
4,64€ Stukprijs incl. btw
5
Central stand fixing screw
AP8121375
Niet beschikbaar
5
Central stand fixing screw
AP8121429
55,50€ Stukprijs incl. btw
6
Coil pull spring
AP8121014
5,74€ Stukprijs incl. btw
7
Lateral stand spring
AP8221197
7,61€ Stukprijs incl. btw
8
Rotary switch
AP8127319
Niet beschikbaar
9
screw
AP8152440
6,41€ Stukprijs incl. btw
10
Hex socket screw
AP8150196
3,74€ Stukprijs incl. btw
11
Curved spring washer *
AP8150292
3,74€ Stukprijs incl. btw
12
Screw w/ flange M6x20
AP8152279
3,74€ Stukprijs incl. btw
De schema's zijn uitsluitend ter informatie. Bij twijfel staan onze specialisten klaar om uw vragen te beantwoorden. Let er bij het toevoegen van een onderdeel aan uw winkelwagen op dat u de gewenste hoeveelheid selecteert. De vermelde stukprijs geldt voor één exemplaar van elk onderdeelnummer.
