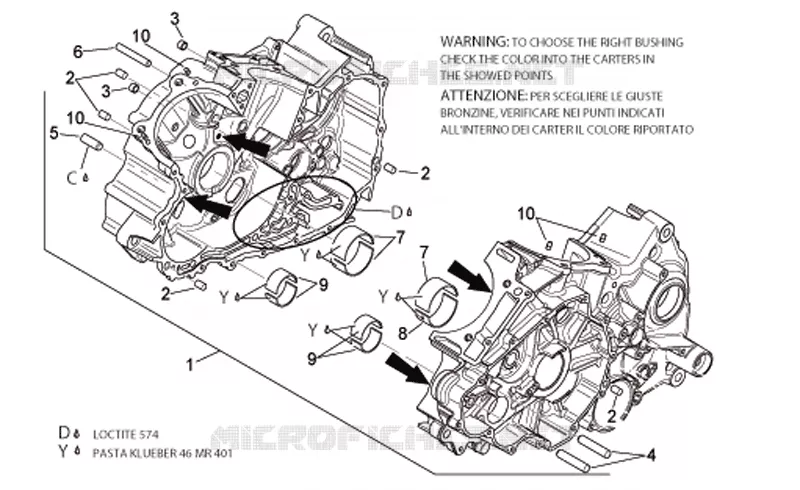

Crankcases I
1
2
2
2
2
3
3
4
5
6
7
7
8
9
9
10
10
10
1
Crankcase assy
AP0296961
Niet beschikbaar
2
Pin M8x12
AP0632010
Niet beschikbaar
3
Pin 10x8
AP0929500
Niet beschikbaar
4
Pin M6x50
AP0229301
Niet beschikbaar
5
Pin
AP0929930
Niet beschikbaar
6
Pin
AP0229385
Niet beschikbaar
7
Bushing half-shell, blue
AP0233745
Niet beschikbaar
7
Bushing half-shell, red
AP0233746
Niet beschikbaar
7
Bushing half-shell, yellow
AP0233748
Niet beschikbaar
8
Bushing half-shell, yellow
AP0233743
Niet beschikbaar
8
Bushing half-shell, blue
AP0233740
Niet beschikbaar
8
Bushing half-shell, red
AP0233741
Niet beschikbaar
9
Bushing half-shell, yellow
AP0233822
Niet beschikbaar
9
Bushing half-shell, red
AP0233820
Niet beschikbaar
9
Bushing half-shell, blue
AP0233711
Niet beschikbaar
10
Pin 5x10
AP0929650
Niet beschikbaar
De schema's zijn uitsluitend ter informatie. Bij twijfel staan onze specialisten klaar om uw vragen te beantwoorden. Let er bij het toevoegen van een onderdeel aan uw winkelwagen op dat u de gewenste hoeveelheid selecteert. De vermelde stukprijs geldt voor één exemplaar van elk onderdeelnummer.
