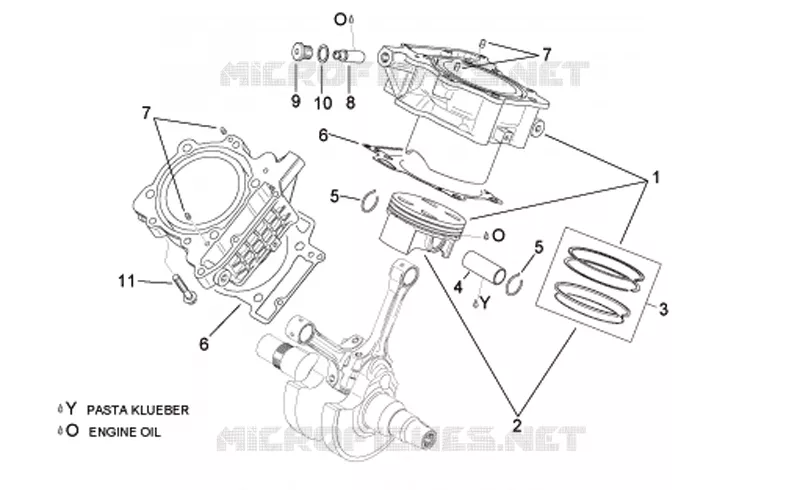

Cylinder with piston
1
2
3
4
5
5
6
6
7
7
8
9
10
11
1
Cylinder with piston
AP0613419
Niet beschikbaar
1
Cylinder with piston
AP0613418
Niet beschikbaar
2
Piston assy 96,956 mm (B)
AP0685211
Niet beschikbaar
2
Piston assy 96,956 mm (B)
AP0684311
Niet beschikbaar
2
Piston assy 96,944 mm (A)
AP0684310
Niet beschikbaar
2
Piston assy 96,944 mm (A)
AP0685210
Niet beschikbaar
3
Piston ring set
AP0295858
Niet beschikbaar
4
Piston pin 22x14x55
AP0216222
45,74€ Stukprijs incl. btw
5
Stop ring 22
AP0245436
Niet beschikbaar
6
Cylinder base gasket
AP0650390
Niet beschikbaar
7
Pin 5x10
AP0929650
Niet beschikbaar
8
Chain tensioner assy.
AP0236253
Niet beschikbaar
8
Chain tensioner assy.
AP0236252
Niet beschikbaar
9
Cover
AP0640455
Niet beschikbaar
10
Gasket ring 16x22
AP0430622
Niet beschikbaar
11
Screw w/ flange
AP0940637
Niet beschikbaar
De schema's zijn uitsluitend ter informatie. Bij twijfel staan onze specialisten klaar om uw vragen te beantwoorden. Let er bij het toevoegen van een onderdeel aan uw winkelwagen op dat u de gewenste hoeveelheid selecteert. De vermelde stukprijs geldt voor één exemplaar van elk onderdeelnummer.
