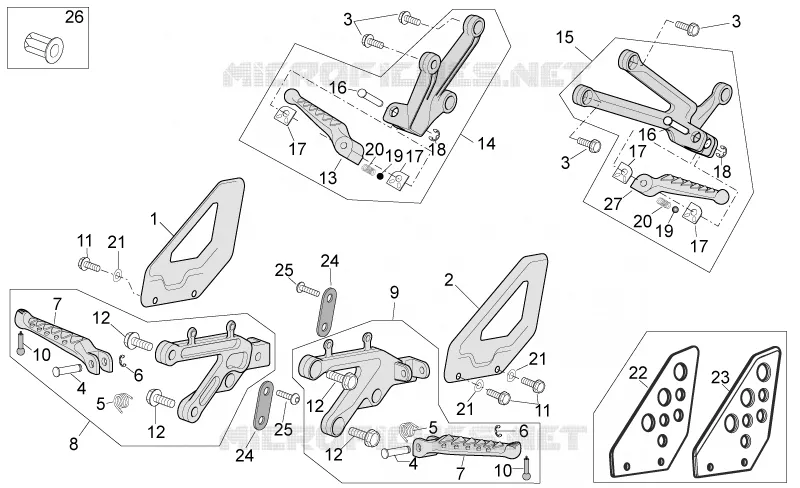

Foot rests
1
2
3
3
3
4
4
5
5
6
6
7
7
8
9
10
10
11
11
12
12
12
12
13
14
15
16
16
17
17
17
17
18
18
19
19
20
20
21
21
21
22
23
24
24
25
25
26
27
1
RH front footrest guard
AP8146503
54,34€ Stukprijs incl. btw
2
LH front footrest guard
AP8146504
54,34€ Stukprijs incl. btw
3
Screw M8x25 INOX
AP8152486
9,59€ Stukprijs incl. btw
3
Screw w/ flange M8x25
AP8152287
4,64€ Stukprijs incl. btw
4
Footrest pin
AP8121566
14,02€ Stukprijs incl. btw
5
Footrest return spring
AP8121224
6,30€ Stukprijs incl. btw
6
Stop ring
AP8152409
3,28€ Stukprijs incl. btw
7
Front footrest, pair
AP8146862
Niet beschikbaar
8
RH front footrest bracket
AP8154070
67,80€ Stukprijs incl. btw
8
RH front footrest bracket
AP8146501
57,00€ Stukprijs incl. btw
9
LH front footrest bracket
AP8146502
Niet beschikbaar
9
LH front footrest bracket
AP8154069
67,80€ Stukprijs incl. btw
10
Footrest pin
AP8134955
27,38€ Stukprijs incl. btw
11
Hex socket screw M6x12
AP8150537
3,06€ Stukprijs incl. btw
11
Screw w/ flange M6x12
AP8152277
3,74€ Stukprijs incl. btw
12
Screw w/ flange M8x30
AP8152288
4,09€ Stukprijs incl. btw
12
Screw
AP8150540
12,96€ Stukprijs incl. btw
13
Rear footrest, RH
AP8146616
156,77€ Stukprijs incl. btw
14
RH footrest support
AP8146566
304,28€ Stukprijs incl. btw
14
RH footrest support
AP8154072
81,00€ Stukprijs incl. btw
15
LH footrest support
AP8154071
93,00€ Stukprijs incl. btw
15
LH footrest support
AP8146567
Niet beschikbaar
16
Footrest pin
AP8134829
8,74€ Stukprijs incl. btw
17
Footrest plate
AP8134451
8,06€ Stukprijs incl. btw
18
Stop ring
AP8152409
3,28€ Stukprijs incl. btw
19
Ball D6,35
AP8101861
2,18€ Stukprijs incl. btw
20
Coil compress. spring
AP8121133
5,17€ Stukprijs incl. btw
21
Spring washer 6,4x11x0,5*
AP8150429
Niet beschikbaar
22
RH front footrest guard
AP8179259
Niet beschikbaar
23
LH front footrest guard
AP8179260
Niet beschikbaar
24
Fairing fixing plate
AP8134541
16,09€ Stukprijs incl. btw
25
Hex socket screw M6x12
AP8150537
3,06€ Stukprijs incl. btw
26
Threaded rivet M6
AP8102544
5,74€ Stukprijs incl. btw
27
Rear footrest, LH
AP8146617
156,77€ Stukprijs incl. btw
De schema's zijn uitsluitend ter informatie. Bij twijfel staan onze specialisten klaar om uw vragen te beantwoorden. Let er bij het toevoegen van een onderdeel aan uw winkelwagen op dat u de gewenste hoeveelheid selecteert. De vermelde stukprijs geldt voor één exemplaar van elk onderdeelnummer.
