door

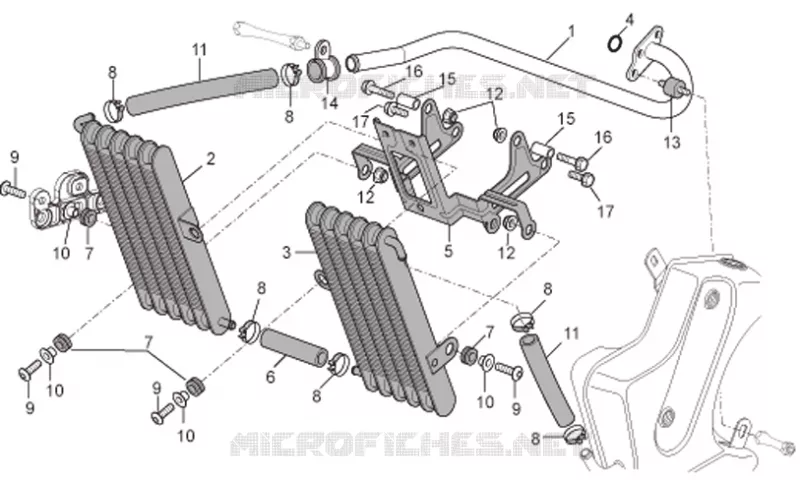

Oil cooler
1
2
3
4
5
6
7
7
7
8
8
8
8
8
8
9
9
9
10
10
10
10
11
11
12
12
12
13
14
15
15
16
16
17
17
1
Oil pipe
AP8106388
76,66€ Stukprijs incl. btw
2
Water cooler, RH
AP8104341
Niet beschikbaar
3
Water cooler, LH
AP8104452
Niet beschikbaar
4
O-ring 115
AP8144008
4,64€ Stukprijs incl. btw
5
Water cooler support
AP8154034
63,35€ Stukprijs incl. btw
6
pipe
AP8144518
Niet beschikbaar
7
Rubber spacer
AP8120030
3,29€ Stukprijs incl. btw
8
White hose clip D17,5x8
AP8102349
12,89€ Stukprijs incl. btw
9
Vite TBEI M6x25
AP8152117
4,64€ Stukprijs incl. btw
10
T bush
AP8221023
3,49€ Stukprijs incl. btw
11
Oil pipe 12x19
AP8106389
Niet beschikbaar
12
Self-locking nut M6
AP8152299
3,74€ Stukprijs incl. btw
13
Silent-block
AP8144061
14,81€ Stukprijs incl. btw
14
Hose clamp
AP8102731
19,42€ Stukprijs incl. btw
15
Conical bush
AP8121313
Niet beschikbaar
16
Screw w/ flange M6x30
AP8152281
3,74€ Stukprijs incl. btw
17
Screw w/ flange M6x16
AP8152278
3,74€ Stukprijs incl. btw
De schema's zijn uitsluitend ter informatie. Bij twijfel staan onze specialisten klaar om uw vragen te beantwoorden. Let er bij het toevoegen van een onderdeel aan uw winkelwagen op dat u de gewenste hoeveelheid selecteert. De vermelde stukprijs geldt voor één exemplaar van elk onderdeelnummer.
