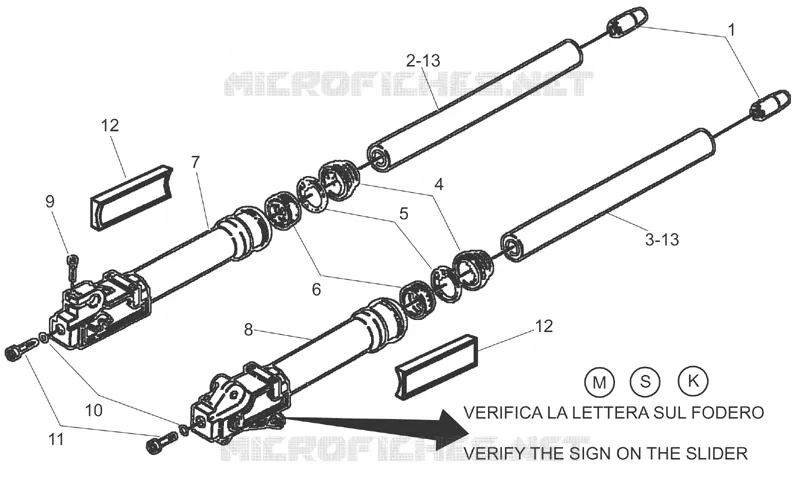

Front fork II
1
2
3
4
5
6
7
8
9
10
11
12
12
13
13
1
Stroke limit stop
AP8203785
Niet beschikbaar
1
Stroke limit stop
AP8223037
6,97€ Stukprijs incl. btw
1
Stroke limit stop
AP8123701
20,74€ Stukprijs incl. btw
2
RH pipe, complete
AP8203787
36,60€ Stukprijs incl. btw
2
RH pipe, complete
AP8203760
Niet beschikbaar
3
LH pipe, complete
AP8203788
Niet beschikbaar
3
LH pipe, complete
AP8203761
Niet beschikbaar
4
Dust cover
AP8203992
Niet beschikbaar
4
Dust cover
AP8223040
13,63€ Stukprijs incl. btw
4
Dust cover
AP8203564
Niet beschikbaar
5
Stop ring
AP8203566
Niet beschikbaar
5
Stop ring
AP8223048
5,42€ Stukprijs incl. btw
5
Stop ring
AP8203993
Niet beschikbaar
6
Oil seal
AP8223047
29,80€ Stukprijs incl. btw
6
Oil seal
AP8206936
Niet beschikbaar
6
Gasket ring
AP8203565
19,31€ Stukprijs incl. btw
7
RH sleeve
AP8203987
Niet beschikbaar
7
RH sleeve
AP8223043
120,61€ Stukprijs incl. btw
7
RH sleeve
AP8203994
82,20€ Stukprijs incl. btw
8
LH sleeve
AP8203988
151,80€ Stukprijs incl. btw
8
LH sleeve
AP8223044
120,61€ Stukprijs incl. btw
8
LH sleeve
AP8203995
82,20€ Stukprijs incl. btw
9
screw
AP8203571
Niet beschikbaar
9
Hex socket screw M6x20
AP8223054
4,36€ Stukprijs incl. btw
9
screw M6x20
AP8203796
14,22€ Stukprijs incl. btw
10
Washer
AP8223052
3,00€ Stukprijs incl. btw
10
Seal washer
AP8203572
3,94€ Stukprijs incl. btw
10
Washer
AP8203794
Niet beschikbaar
11
screw
AP8223053
5,94€ Stukprijs incl. btw
11
screw
AP8203795
4,46€ Stukprijs incl. btw
11
Screw M8x30
AP8203570
Niet beschikbaar
12
Reflector
AP8224342
17,68€ Stukprijs incl. btw
13
Sleeve cpl.
AP8223051
324,07€ Stukprijs incl. btw
De schema's zijn uitsluitend ter informatie. Bij twijfel staan onze specialisten klaar om uw vragen te beantwoorden. Let er bij het toevoegen van een onderdeel aan uw winkelwagen op dat u de gewenste hoeveelheid selecteert. De vermelde stukprijs geldt voor één exemplaar van elk onderdeelnummer.
