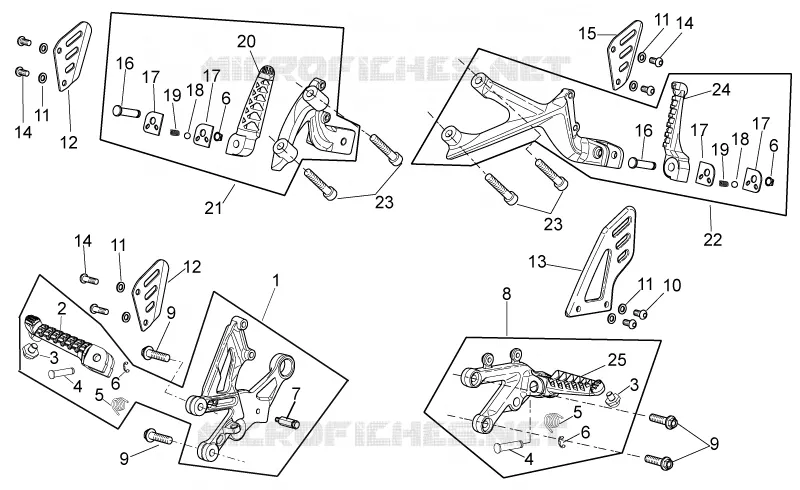

Foot rests
25
24
23
23
22
21
20
19
19
18
18
17
17
17
17
16
16
15
14
14
14
13
12
12
11
11
11
11
10
9
9
9
8
7
6
6
6
6
5
5
4
4
3
3
2
1
1
RH front footrest bracket
2B003415
Niet beschikbaar
2
RH Foot rests
897830
Niet beschikbaar
3
Pin
GU30441005
Niet beschikbaar
4
Footrest pin
CM228401
5,03€ Stukprijs incl. btw
5
Footrest return spring
AP8121224
6,30€ Stukprijs incl. btw
6
Stop ring
AP8120573
2,53€ Stukprijs incl. btw
7
Springs fixing pin
GU05677730
23,39€ Stukprijs incl. btw
8
LH front footrest bracket
897829
190,84€ Stukprijs incl. btw
9
Screw
AP8150540
12,96€ Stukprijs incl. btw
10
Hex socket screw M6x20
AP8224470
3,07€ Stukprijs incl. btw
11
Spring washer 6,4x11x0,5*
AP8150429
Niet beschikbaar
12
RH protection
858787
76,45€ Stukprijs incl. btw
13
LH protection
858788
76,45€ Stukprijs incl. btw
14
Hex socket screw M6x12
AP8150537
3,06€ Stukprijs incl. btw
15
LH rear footrest guard
894201
48,24€ Stukprijs incl. btw
16
Footrest pin
CM228402
5,33€ Stukprijs incl. btw
17
Footrest plate
AP8134451
8,06€ Stukprijs incl. btw
18
Ball D6,35
AP8101861
2,18€ Stukprijs incl. btw
19
Coil compress. spring
AP8121133
5,17€ Stukprijs incl. btw
20
Rear footrest, RH
897832
104,36€ Stukprijs incl. btw
21
Rear footrest, RH cpl
897834
204,65€ Stukprijs incl. btw
22
Rear footrest, LH
897835
204,65€ Stukprijs incl. btw
23
Hex socket screw M8x45
AP8150164
3,74€ Stukprijs incl. btw
24
Rear footrest, LH
897833
104,36€ Stukprijs incl. btw
25
LH Foot rests
897831
Niet beschikbaar
De schema's zijn uitsluitend ter informatie. Bij twijfel staan onze specialisten klaar om uw vragen te beantwoorden. Let er bij het toevoegen van een onderdeel aan uw winkelwagen op dat u de gewenste hoeveelheid selecteert. De vermelde stukprijs geldt voor één exemplaar van elk onderdeelnummer.
