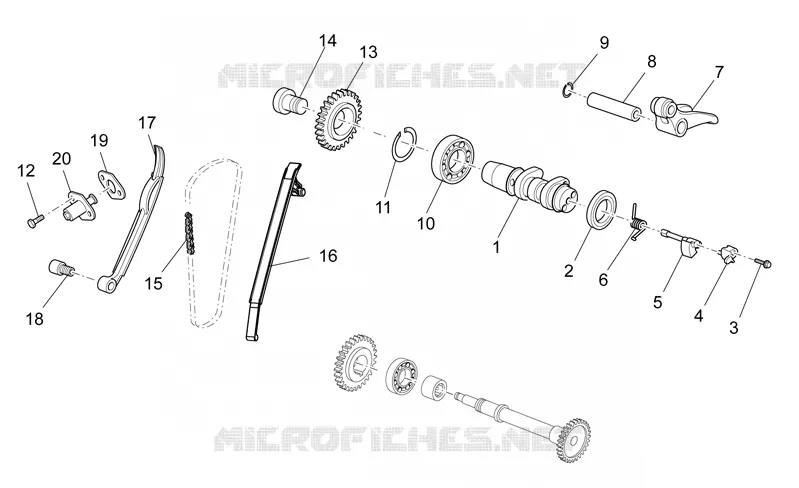

Rear cylinder timing system
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
1
Rear camshaft
851001
Niet beschikbaar
1
Rear camshaft
CM2377015
Niet beschikbaar
2
Ball bearing D25x37x7
AP9150364
Niet beschikbaar
3
Screw w/ flange M5x20
AP8152274
3,74€ Stukprijs incl. btw
4
Block
AP9150303
31,01€ Stukprijs incl. btw
5
Rear valve control
CM238701
Niet beschikbaar
5
Rear valve control "5.90"
CM238702
Niet beschikbaar
5
Rear valve control "5.70"
CM238706
Niet beschikbaar
5
Rear valve control "5.75"
CM238705
Niet beschikbaar
5
Rear valve control
855508
Niet beschikbaar
5
Rear valve control "5.85"
CM238703
Niet beschikbaar
5
Rear valve control "5.80"
CM238704
Niet beschikbaar
6
Spring
855516
9,83€ Stukprijs incl. btw
6
Spring
AP9150304
10,52€ Stukprijs incl. btw
7
Rocker arm exhaust
AP9150096
Niet beschikbaar
8
Rocker shaft
AP9150101
Niet beschikbaar
9
Snap ring
006612
Niet beschikbaar
10
Ball bearing D25x42x9
AP9150372
Niet beschikbaar
11
Circlip
006642
3,07€ Stukprijs incl. btw
12
Screw w/ flange M6x16
AP8152278
3,74€ Stukprijs incl. btw
13
Timing gear Z=22
AP9150506
71,52€ Stukprijs incl. btw
14
Special screw M16x1
AP9150508
18,31€ Stukprijs incl. btw
15
Camshaft chain
AP9150327
44,04€ Stukprijs incl. btw
15
Camshaft chain
AP9150133
Niet beschikbaar
16
Chain guide plate L186
AP9150300
14,17€ Stukprijs incl. btw
16
Chain guide plate L177
AP9150011
Niet beschikbaar
17
Chain tensioner sliding block
AP9150012
Niet beschikbaar
18
Screw M6x12
AP9150142
8,78€ Stukprijs incl. btw
19
Guarnizione cilindro/tendicatena
847928
5,63€ Stukprijs incl. btw
20
Complete chain tensioner
82650R
30,00€ Stukprijs incl. btw
De schema's zijn uitsluitend ter informatie. Bij twijfel staan onze specialisten klaar om uw vragen te beantwoorden. Let er bij het toevoegen van een onderdeel aan uw winkelwagen op dat u de gewenste hoeveelheid selecteert. De vermelde stukprijs geldt voor één exemplaar van elk onderdeelnummer.
