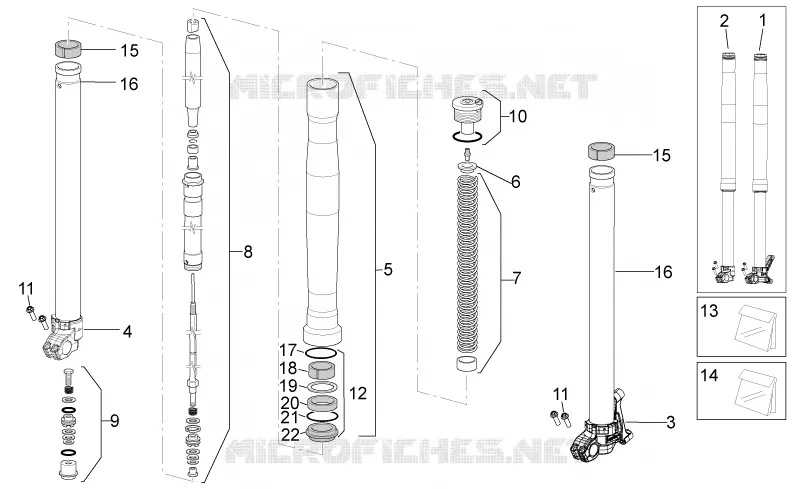

Front fork I
1
2
3
4
5
6
7
8
9
10
11
11
12
13
14
15
15
16
16
17
18
19
20
21
22
1
LH hub cpl.
859802
Niet beschikbaar
1
LH hub cpl.
855116
Niet beschikbaar
2
RH hub cpl.
859803
Niet beschikbaar
2
RH hub cpl.
855119
Niet beschikbaar
3
Hub+LH fork leg
896559
Niet beschikbaar
3
LH wheel carrier
855796
151,80€ Stukprijs incl. btw
4
Hub+RH fork leg
896558
Niet beschikbaar
4
RH wheel carrier
855797
151,80€ Stukprijs incl. btw
5
Sleeve cpl.
896553
Niet beschikbaar
5
Sleeve cpl.
855798
277,80€ Stukprijs incl. btw
6
Ring spring D.40
AP9100872
Niet beschikbaar
6
Ring spring d.50
896554
Niet beschikbaar
7
Spring kit
AP9100873
99,13€ Stukprijs incl. btw
7
Spring kit
896555
Niet beschikbaar
8
Plunger, complete
896557
Niet beschikbaar
8
Plunger, complete
AP9100874
Niet beschikbaar
9
Valve D.45
AP9100875
147,00€ Stukprijs incl. btw
9
Valve d.50
896556
69,00€ Stukprijs incl. btw
10
Plug cpl. d.50
893189
109,56€ Stukprijs incl. btw
10
Plug cpl. D.45
AP9100876
455,28€ Stukprijs incl. btw
11
Screw M6x25
893187
8,39€ Stukprijs incl. btw
11
Screw w/ flange M8x25
AP8152287
4,64€ Stukprijs incl. btw
12
Dust cover+oil seal kit
AP9100877
99,61€ Stukprijs incl. btw
13
Gaskets set d.48
AP9100878
79,80€ Stukprijs incl. btw
14
Bushes kit
AP9100879
42,60€ Stukprijs incl. btw
15
Lower bush
854000
30,60€ Stukprijs incl. btw
15
Bushing
894814
Niet beschikbaar
16
Front fork tube
894816
Niet beschikbaar
17
Stop ring d.62x2,0
855001
12,36€ Stukprijs incl. btw
18
Upper bush 50x15
853982
63,20€ Stukprijs incl. btw
19
Ring
AP8163069
19,51€ Stukprijs incl. btw
20
Oil seal
AP8163070
41,06€ Stukprijs incl. btw
21
Stop ring
AP8163071
6,06€ Stukprijs incl. btw
22
Dust cover
AP8163072
49,16€ Stukprijs incl. btw
De schema's zijn uitsluitend ter informatie. Bij twijfel staan onze specialisten klaar om uw vragen te beantwoorden. Let er bij het toevoegen van een onderdeel aan uw winkelwagen op dat u de gewenste hoeveelheid selecteert. De vermelde stukprijs geldt voor één exemplaar van elk onderdeelnummer.
