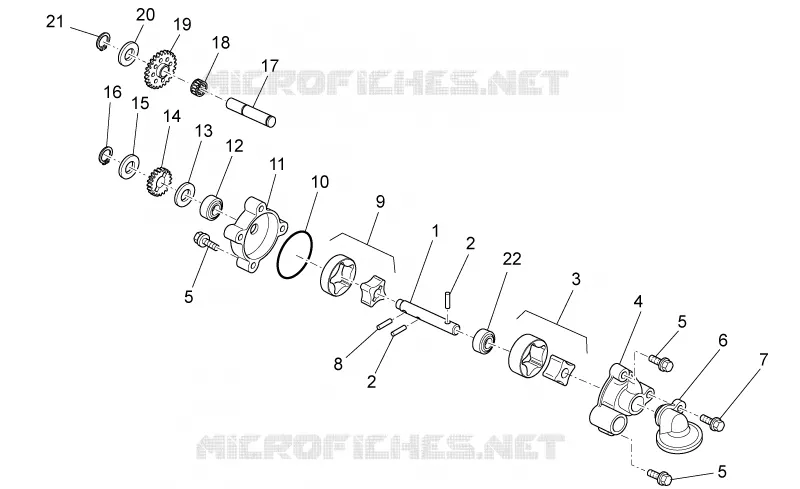

Oil pump
1
2
2
3
4
5
5
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
1
Oil pump shaft assy.
AP9150071
111,55€ Stukprijs incl. btw
2
Pin 4x15,8
AP9150377
26,70€ Stukprijs incl. btw
3
Internal and external rotor H19
AP9150157
85,26€ Stukprijs incl. btw
4
Oil pump housing
AP9150158
Niet beschikbaar
5
Screw w/ flange M6x25
AP8152280
4,46€ Stukprijs incl. btw
6
Filter with net-air intake
AP9150162
Niet beschikbaar
7
Screw w/ flange M6x30
AP8152281
3,74€ Stukprijs incl. btw
8
Pin 4x13,8
AP9150376
22,70€ Stukprijs incl. btw
9
Internal and external rotor H8
AP9150291
63,32€ Stukprijs incl. btw
10
O-ring D44,17x1,78
AP9150461
2,28€ Stukprijs incl. btw
11
Oil pump housing
AP9150217
Niet beschikbaar
12
Oil seal D19x10x7/5.5
AP9150385
26,95€ Stukprijs incl. btw
13
Clearance washer 10,1x23
AP9150076
9,80€ Stukprijs incl. btw
14
Oil pump gear Z=12
AP9150159
308,84€ Stukprijs incl. btw
15
Clearance washer 9,1x16x
AP9150075
9,80€ Stukprijs incl. btw
16
Circlip 9x1
AP9150396
7,10€ Stukprijs incl. btw
17
Pin 4x25,8
AP9150160
117,89€ Stukprijs incl. btw
18
Roller cage D11x16x10
AP9150463
Niet beschikbaar
19
Idle gear Z=22
AP9150161
Niet beschikbaar
20
Clearance washer 11,1x18
AP9150074
9,64€ Stukprijs incl. btw
21
Circlip D11
006411
2,04€ Stukprijs incl. btw
22
Oil seal D10x16x4
AP9150443
13,39€ Stukprijs incl. btw
De schema's zijn uitsluitend ter informatie. Bij twijfel staan onze specialisten klaar om uw vragen te beantwoorden. Let er bij het toevoegen van een onderdeel aan uw winkelwagen op dat u de gewenste hoeveelheid selecteert. De vermelde stukprijs geldt voor één exemplaar van elk onderdeelnummer.
