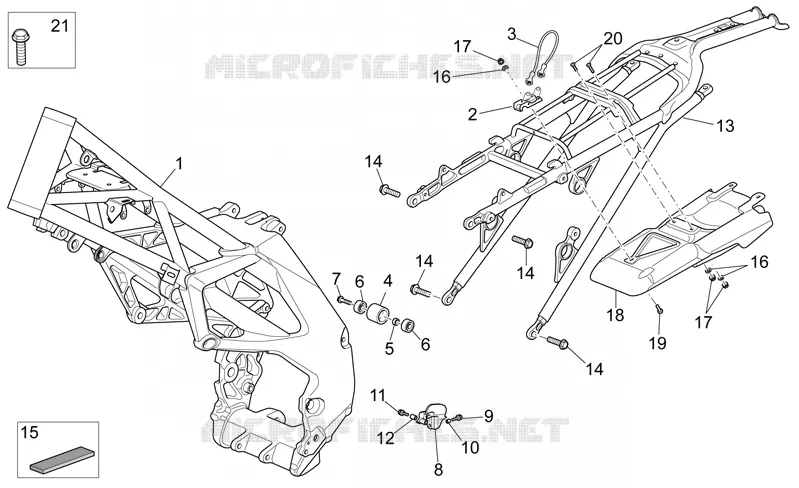

Frame
1
2
3
4
5
6
6
7
8
9
10
11
12
13
14
14
14
14
15
16
16
17
17
18
19
20
21
1
Frame
855334
Niet beschikbaar
1
Frame
855308
Niet beschikbaar
2
Plate
AP9100766
12,54€ Stukprijs incl. btw
3
Wire
851495
Niet beschikbaar
3
Wire
AP9100770
20,41€ Stukprijs incl. btw
4
Black chain guide roller
AP9100173
15,32€ Stukprijs incl. btw
5
Spacer
AP9100174
4,09€ Stukprijs incl. btw
6
Ball bearing 8x22x7
AP9100175
14,24€ Stukprijs incl. btw
7
Screw w/ flange M8x35 titan
853534
Niet beschikbaar
7
Screw w/ flange
AP8152289
3,07€ Stukprijs incl. btw
8
Lower chain guide plate
AP9100688
15,41€ Stukprijs incl. btw
9
Screw w/ flange M5x12 titan
853536
Niet beschikbaar
9
Screw w/ flange M5x12
AP8152272
3,74€ Stukprijs incl. btw
10
Spacer
AP8120253
3,53€ Stukprijs incl. btw
11
Screw w/ flange M5x20 titan
853537
Niet beschikbaar
11
Screw w/ flange M5x25
AP8152275
Niet beschikbaar
12
Spacer H11,5
AP8120313
Niet beschikbaar
12
Spacer
AP9100724
8,10€ Stukprijs incl. btw
13
Saddle support
855337
Niet beschikbaar
13
Saddle support
855309
Niet beschikbaar
14
Screw w/ flange M10x1,25 titan
853533
Niet beschikbaar
14
Screw w/ flange M10x1,25
AP9100389
Niet beschikbaar
15
Gasket
AP8144538
Niet beschikbaar
16
Washer 4,3x16*
AP8150159
3,74€ Stukprijs incl. btw
17
Nut M4
AP8150204
3,74€ Stukprijs incl. btw
18
Heat protection
AP9100243
36,86€ Stukprijs incl. btw
19
Hex socket screw M4x10 inox
AP9100769
7,75€ Stukprijs incl. btw
20
screw M4x12
AP9100768
8,46€ Stukprijs incl. btw
21
Screw w/ flange M8x30 titan
853535
Niet beschikbaar
De schema's zijn uitsluitend ter informatie. Bij twijfel staan onze specialisten klaar om uw vragen te beantwoorden. Let er bij het toevoegen van een onderdeel aan uw winkelwagen op dat u de gewenste hoeveelheid selecteert. De vermelde stukprijs geldt voor één exemplaar van elk onderdeelnummer.
