door

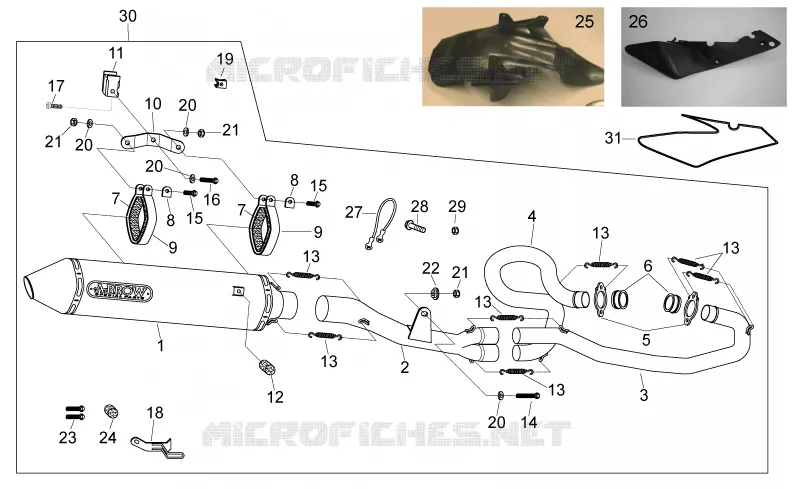

Exhaust unit II
1
2
3
4
5
6
7
7
8
8
9
9
10
11
12
13
13
13
13
13
13
14
15
15
16
17
18
19
20
20
20
20
21
21
21
22
23
24
25
26
27
28
29
30
31
1
Silencer
858512
Niet beschikbaar
2
Joint
858513
Niet beschikbaar
3
Front. Exhaust pipe
858514
Niet beschikbaar
4
Rear exhaust pipe
858515
Niet beschikbaar
5
Flange
858516
50,33€ Stukprijs incl. btw
6
Bushing
858517
71,63€ Stukprijs incl. btw
7
Gasket
858519
43,32€ Stukprijs incl. btw
8
Plate
858520
Niet beschikbaar
9
Hose clamp
858521
Niet beschikbaar
10
Bracket
858522
Niet beschikbaar
11
Spacer
858523
Niet beschikbaar
12
Stand end stop
AP8144277
7,14€ Stukprijs incl. btw
13
Spring
858524
Niet beschikbaar
14
Screw w/ flange M8x40
AP8152290
4,46€ Stukprijs incl. btw
15
Screw w/ flange M8x20
AP8152286
4,64€ Stukprijs incl. btw
16
Screw w/ flange M8x30
AP8152288
4,09€ Stukprijs incl. btw
17
Hex socket screw M8x25
AP8150170
6,74€ Stukprijs incl. btw
18
Plate
858525
61,63€ Stukprijs incl. btw
19
Clip
858540
Niet beschikbaar
20
Washer
AP8150009
3,07€ Stukprijs incl. btw
21
Self-locking nut M8
AP8152300
3,94€ Stukprijs incl. btw
22
T bush *
AP8120508
5,87€ Stukprijs incl. btw
23
Screw w/ flange M6x20
AP8152279
3,74€ Stukprijs incl. btw
24
Rubber spacer
AP8144087
11,18€ Stukprijs incl. btw
25
Guard
851449
Niet beschikbaar
26
RH side panel, Racing
851448
Niet beschikbaar
27
Wire
851495
Niet beschikbaar
28
Screw w/ flange
AP8152289
3,07€ Stukprijs incl. btw
29
Self-locking nut M8
AP8152300
3,94€ Stukprijs incl. btw
30
Exhaust unit KIT
858409
Niet beschikbaar
31
Decal Racing
858503
62,05€ Stukprijs incl. btw
De schema's zijn uitsluitend ter informatie. Bij twijfel staan onze specialisten klaar om uw vragen te beantwoorden. Let er bij het toevoegen van een onderdeel aan uw winkelwagen op dat u de gewenste hoeveelheid selecteert. De vermelde stukprijs geldt voor één exemplaar van elk onderdeelnummer.
