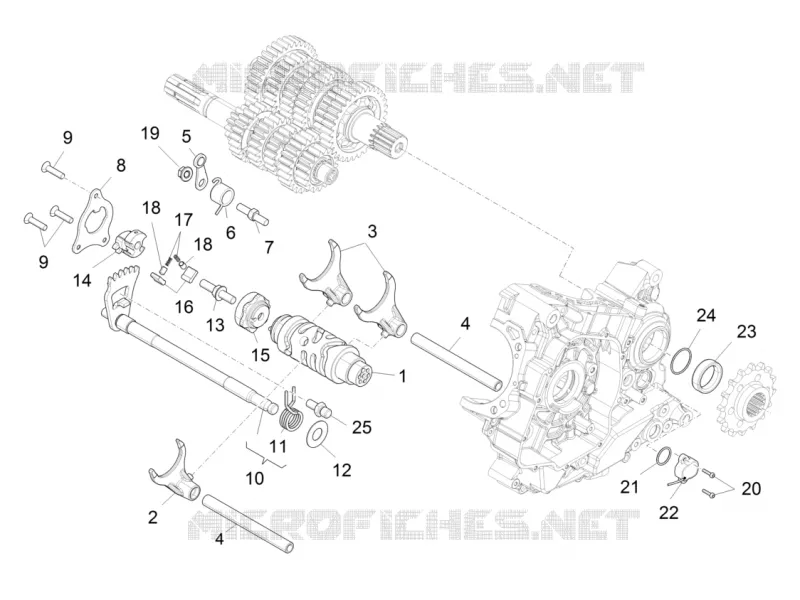

Versnellingsbak / Keuzeschakelaar / Shift cam
25
24
23
22
21
20
19
18
18
17
16
15
14
13
12
11
10
9
9
8
7
6
5
4
4
3
2
1
1
Shift cam cpl.
875796
227,99€ Stukprijs incl. btw
2
Fork output
874599
64,78€ Stukprijs incl. btw
3
Fork output
879554
69,08€ Stukprijs incl. btw
4
Fork shaft
873772
28,61€ Stukprijs incl. btw
5
Index assy. lever
872154
Niet beschikbaar
6
Gear stop lever spring
B013306
9,83€ Stukprijs incl. btw
7
Threaded pin
B013928
17,11€ Stukprijs incl. btw
8
Selector lock plate
871649
21,20€ Stukprijs incl. btw
9
screw
878867
4,46€ Stukprijs incl. btw
10
Selector shaft
B014437
Niet beschikbaar
11
Spring
B014440
10,25€ Stukprijs incl. btw
12
Flat washer 14x30x1
971718
3,24€ Stukprijs incl. btw
13
Threaded pin M8x1,25
878870
35,99€ Stukprijs incl. btw
14
Shift cam plate
872560
71,68€ Stukprijs incl. btw
15
Selector drum
B017809
67,69€ Stukprijs incl. btw
16
Lever
AP9150069
10,48€ Stukprijs incl. btw
17
Spring
AP9150064
15,67€ Stukprijs incl. btw
18
Spring pillar
AP9150070
17,17€ Stukprijs incl. btw
19
Self locking nut
597565
2,81€ Stukprijs incl. btw
20
Torx convex big end screw
B016796
Niet beschikbaar
21
Packing
877441
6,35€ Stukprijs incl. btw
22
Gear position sensor
857265
169,26€ Stukprijs incl. btw
23
Spacer
974558
35,08€ Stukprijs incl. btw
24
Gasket OR
871901
2,96€ Stukprijs incl. btw
25
Selector lock
974130
34,08€ Stukprijs incl. btw
De schema's zijn uitsluitend ter informatie. Bij twijfel staan onze specialisten klaar om uw vragen te beantwoorden. Let er bij het toevoegen van een onderdeel aan uw winkelwagen op dat u de gewenste hoeveelheid selecteert. De vermelde stukprijs geldt voor één exemplaar van elk onderdeelnummer.
