door

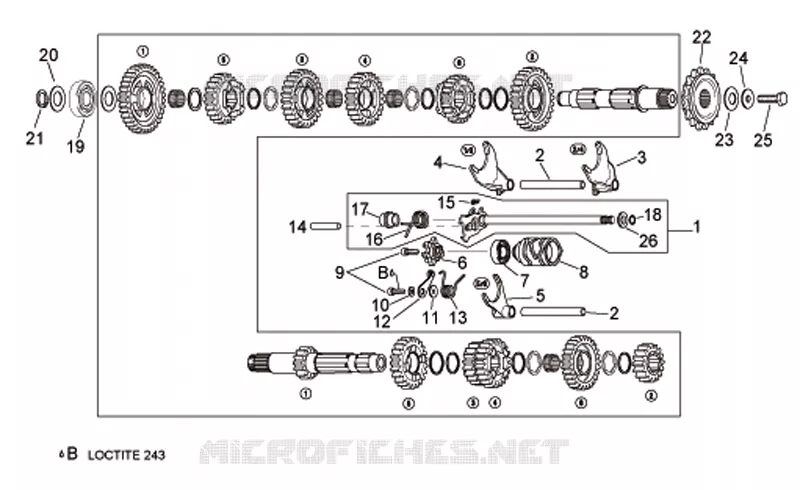

Gear box selector
1
2
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
1
Gear shaft+spring cpl.
AP0620235
Niet beschikbaar
2
Fork shaft
AP0258383
Niet beschikbaar
3
Fork
AP0258361
Niet beschikbaar
4
Fork
AP0258351
Niet beschikbaar
5
Fork
AP0258376
Niet beschikbaar
6
Index washer
AP0258310
Niet beschikbaar
7
Ball bearing 16101
AP0932335
Niet beschikbaar
8
Shift cam
AP0258328
Niet beschikbaar
9
Hex socket screw
AP0241932
Niet beschikbaar
10
Washer 6,4
AP0244211
Niet beschikbaar
11
Washer
AP0227716
Niet beschikbaar
12
Index assy. lever
AP0248375
Niet beschikbaar
13
Index spring
AP0239247
Niet beschikbaar
14
Pin
AP0229385
Niet beschikbaar
15
Spring
AP0239430
16,26€ Stukprijs incl. btw
16
Pin spring
AP0239422
18,11€ Stukprijs incl. btw
17
Bush
AP0247940
7,48€ Stukprijs incl. btw
18
Circlip
AP0245440
Niet beschikbaar
19
Ball bearing 6304
AP0832144
Niet beschikbaar
20
Washer 20,2x27,5
AP0227442
Niet beschikbaar
21
Circlip 20x1,75
AP0945665
5,22€ Stukprijs incl. btw
22
Pinion
AP8176196
Niet beschikbaar
22
Rubbered pinion
AP0236365
Niet beschikbaar
23
Spring washer 34x16,3
AP0239450
Niet beschikbaar
24
Washer
AP0627210
Niet beschikbaar
25
Hex screw
AP0940741
Niet beschikbaar
26
Washer
AP0227714
Niet beschikbaar
De schema's zijn uitsluitend ter informatie. Bij twijfel staan onze specialisten klaar om uw vragen te beantwoorden. Let er bij het toevoegen van een onderdeel aan uw winkelwagen op dat u de gewenste hoeveelheid selecteert. De vermelde stukprijs geldt voor één exemplaar van elk onderdeelnummer.
