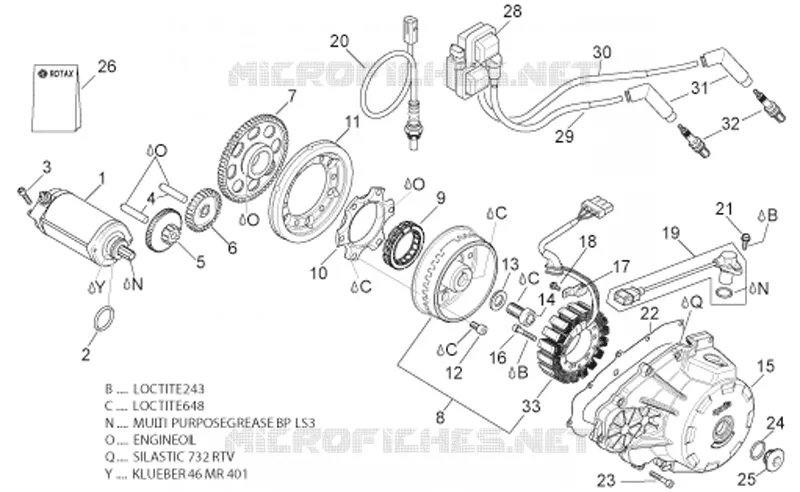

Ignition unit
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
28
29
30
31
32
33
1
Starter motor cpl.
AP0294356
Niet beschikbaar
2
O-ring 24,4x3,1
AP0250140
Niet beschikbaar
3
Hex socket screw
AP0840882
Niet beschikbaar
4
Pin M6x50
AP0229301
Niet beschikbaar
5
Double gear
AP0634740
Niet beschikbaar
6
Idle gear
AP0634600
Niet beschikbaar
7
Sprag clutch gear z=64
AP0634595
Niet beschikbaar
8
Ignition unit cpl.
AP0296988
Niet beschikbaar
9
Sprag clutch
AP0659110
502,76€ Stukprijs incl. btw
10
Sprag clutch housing
AP0659550
Niet beschikbaar
11
Weight
AP0265045
Niet beschikbaar
12
Hex socket screw
AP0641505
Niet beschikbaar
13
Washer a17
AP0627270
Niet beschikbaar
14
Hex socket screw
AP0241540
Niet beschikbaar
15
Ignition cover
AP0610706
Niet beschikbaar
16
Hex socket screw M6x40
AP0241816
Niet beschikbaar
17
Cable protection
AP0251390
Niet beschikbaar
18
Self-tap screw M5x12
AP0941935
Niet beschikbaar
19
Pick-up
AP0966570
Niet beschikbaar
20
Lamda sensor
AP0266030
Niet beschikbaar
21
Screw w/ flange
AP0240580
Niet beschikbaar
22
Gasket
AP0650340
Niet beschikbaar
23
Hex socket screw M6x30
AP0840880
9,46€ Stukprijs incl. btw
24
O-ring 23,3x2,4
AP0430782
8,44€ Stukprijs incl. btw
25
Cover m24x1,5
AP0241631
Niet beschikbaar
26
Starter motor revision kit
AP0294354
Niet beschikbaar
28
HT coil
AP0266070
Niet beschikbaar
29
HT wire
AP0266140
Niet beschikbaar
30
HT wire
AP0266145
Niet beschikbaar
31
Int.sparkplug cap
AP0265246
Niet beschikbaar
32
Spark plug DCPR9E
AP0297942
13,31€ Stukprijs incl. btw
33
Stator
AP0685330
Niet beschikbaar
De schema's zijn uitsluitend ter informatie. Bij twijfel staan onze specialisten klaar om uw vragen te beantwoorden. Let er bij het toevoegen van een onderdeel aan uw winkelwagen op dat u de gewenste hoeveelheid selecteert. De vermelde stukprijs geldt voor één exemplaar van elk onderdeelnummer.
