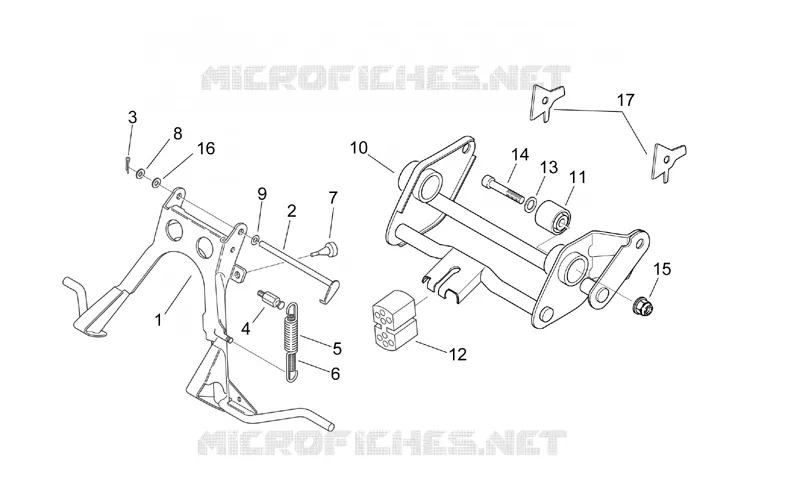

Central stand - Connecting rod
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
1
Central stand
AP8235173
43,80€ Stukprijs incl. btw
2
Stand pin mm 151,8
AP8221328
Niet beschikbaar
3
Split pin
AP8101606
Niet beschikbaar
4
Spring coupling screw
AP8221323
13,07€ Stukprijs incl. btw
5
Lateral stand spring
AP8221317
15,49€ Stukprijs incl. btw
6
Internal lateral stand spring
AP8221318
12,46€ Stukprijs incl. btw
7
Rubber spacer
AP8220238
4,43€ Stukprijs incl. btw
8
Washer 8,4x16x1,6
AP8150017
3,74€ Stukprijs incl. btw
9
Washer 8,5x15x0,8
AP8150376
3,56€ Stukprijs incl. btw
10
Engine connecting element
AP8235110
55,80€ Stukprijs incl. btw
11
Silent-block
AP8220346
38,59€ Stukprijs incl. btw
12
Fase drift
AP8220399
13,25€ Stukprijs incl. btw
13
Washer 10,5x21x2*
AP8150020
3,74€ Stukprijs incl. btw
14
Hex socket screw
AP8150086
5,52€ Stukprijs incl. btw
15
Self-locking nut
AP8152301
3,94€ Stukprijs incl. btw
16
Belleville spring
AP8121697
Niet beschikbaar
De schema's zijn uitsluitend ter informatie. Bij twijfel staan onze specialisten klaar om uw vragen te beantwoorden. Let er bij het toevoegen van een onderdeel aan uw winkelwagen op dat u de gewenste hoeveelheid selecteert. De vermelde stukprijs geldt voor één exemplaar van elk onderdeelnummer.
