door

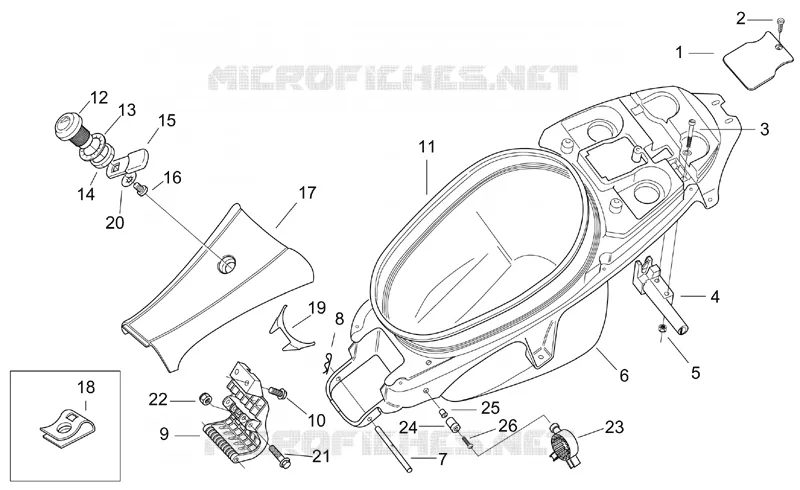

Rear body II
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
1
Fuel sens. cover, black
AP8238856
Niet beschikbaar
2
Self-tap screw 3,9x14
AP8150413
3,43€ Stukprijs incl. btw
3
Screw w/ flange
AP8152283
4,09€ Stukprijs incl. btw
4
Saddle lock
AP8202246
Niet beschikbaar
5
Low self-locking nut
AP8150430
3,07€ Stukprijs incl. btw
6
Helmet compartment
AP8258058
Niet beschikbaar
7
Saddle spin
AP8221321
10,08€ Stukprijs incl. btw
8
Split pin
AP8201643
5,50€ Stukprijs incl. btw
9
Pillar hinge, black
AP8238681
55,42€ Stukprijs incl. btw
10
Screw w/ flange M6x20
AP8152279
3,74€ Stukprijs incl. btw
11
Top box weatherseal
AP8220313
Niet beschikbaar
12
Lock
AP8202247
Niet beschikbaar
13
Notched washer
AP8221312
3,74€ Stukprijs incl. btw
14
Low nut M19x1*
AP8152194
4,46€ Stukprijs incl. btw
15
Lever
AP8201620
10,25€ Stukprijs incl. btw
16
Screw M4x6
AP8201749
2,81€ Stukprijs incl. btw
17
Tunnel cover, grey
AP8258561
Niet beschikbaar
17
Tunnel cover, met.black
AP8249532
Niet beschikbaar
17
Tunnel cover
AP8258789
Niet beschikbaar
18
Clip M6
AP8102376
Niet beschikbaar
19
Saddle hinge rubber
AP8220468
Niet beschikbaar
20
Washer
AP8201748
3,07€ Stukprijs incl. btw
21
Screw w/ flange M6x35
AP8152282
3,07€ Stukprijs incl. btw
22
Self-locking nut M6
AP8152299
3,74€ Stukprijs incl. btw
23
Fuel pump support
AP8220592
18,13€ Stukprijs incl. btw
24
Pin
AP8234195
5,30€ Stukprijs incl. btw
25
Rubber w/ insert
AP8120531
9,12€ Stukprijs incl. btw
26
Hex socket screw
AP8225369
3,07€ Stukprijs incl. btw
De schema's zijn uitsluitend ter informatie. Bij twijfel staan onze specialisten klaar om uw vragen te beantwoorden. Let er bij het toevoegen van een onderdeel aan uw winkelwagen op dat u de gewenste hoeveelheid selecteert. De vermelde stukprijs geldt voor één exemplaar van elk onderdeelnummer.
