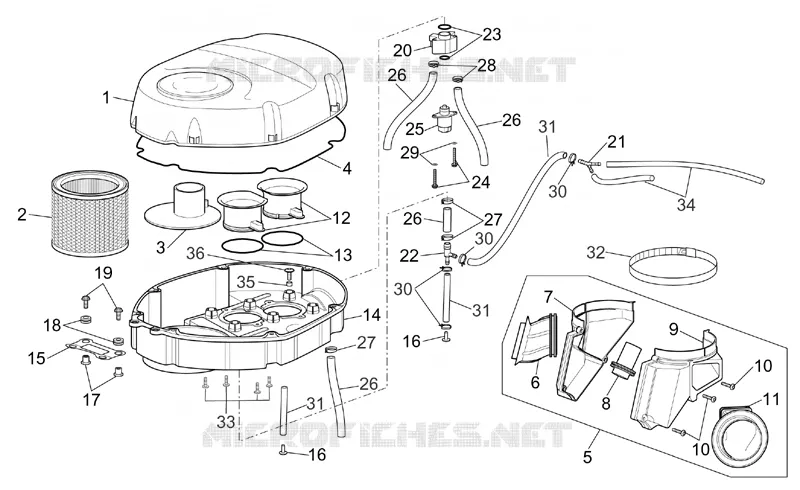

Air box
1
2
3
4
5
6
7
8
9
10
10
11
12
13
14
15
16
16
17
18
19
20
21
22
23
24
25
26
26
26
26
27
27
28
29
30
30
30
31
31
31
32
33
34
35
36
1
Upper side filter case
AP8149048
Niet beschikbaar
2
Air filter
AP8102610
Niet beschikbaar
3
Reduction diaphragm
AP8134739
10,26€ Stukprijs incl. btw
3
Reduction diaphragm
AP8134743
Niet beschikbaar
4
Gasket D3
AP8120615
4,62€ Stukprijs incl. btw
5
Intake hose
AP8144414
Niet beschikbaar
6
Intake hose RH
AP8144381
50,47€ Stukprijs incl. btw
7
RH intake manifold
AP8106812
Niet beschikbaar
8
Choke hold
AP8144383
Niet beschikbaar
9
LH intake manifold
AP8106813
Niet beschikbaar
10
Spec. self-tap screw 3,5x20
AP8221242
3,02€ Stukprijs incl. btw
11
Intake hose LH
AP8144382
Niet beschikbaar
12
Intake opening
AP8106395
Niet beschikbaar
13
O-ring 159
AP8144063
4,54€ Stukprijs incl. btw
14
Lower side filter case
AP8149049
Niet beschikbaar
14
Lower side filter case
AP8158012
Niet beschikbaar
15
Filter case front. supp.
AP8134478
Niet beschikbaar
16
Plug
AP8120876
10,80€ Stukprijs incl. btw
17
T bush *
AP8121731
5,87€ Stukprijs incl. btw
18
Filter housing rubber
AP8220370
5,32€ Stukprijs incl. btw
19
Screw w/ flange M6x16
AP8152278
3,74€ Stukprijs incl. btw
20
Min.adj.valve
AP8149165
20,02€ Stukprijs incl. btw
21
Joint "y"
AP8104250
Niet beschikbaar
22
3-way union
AP8202154
Niet beschikbaar
23
O-ring
AP8220095
3,01€ Stukprijs incl. btw
24
Screw
AP8150406
Niet beschikbaar
25
Min.regulation engine
AP8124981
Niet beschikbaar
26
pipe 9x14
AP8120987
26,99€ Stukprijs incl. btw
27
Hose clamp
AP8102766
3,74€ Stukprijs incl. btw
28
Hose clamp D10,1
AP8101595
5,93€ Stukprijs incl. btw
29
Curved spring washer 5,3x10x0,5
AP8150272
5,52€ Stukprijs incl. btw
30
Hose clip, green D11x6,6x1
AP8120446
5,17€ Stukprijs incl. btw
31
Fuel pipe 6x10
AP8144038
41,75€ Stukprijs incl. btw
32
Hose clamp 100-120
AP8102763
Niet beschikbaar
33
Self-tap screw 3,9x14
AP8150413
3,43€ Stukprijs incl. btw
34
Pipe, grey 3x8
AP8120955
20,46€ Stukprijs incl. btw
35
Spacer
AP8120253
3,53€ Stukprijs incl. btw
36
Screw w/ flange M6x16
AP8152246
6,04€ Stukprijs incl. btw
De schema's zijn uitsluitend ter informatie. Bij twijfel staan onze specialisten klaar om uw vragen te beantwoorden. Let er bij het toevoegen van een onderdeel aan uw winkelwagen op dat u de gewenste hoeveelheid selecteert. De vermelde stukprijs geldt voor één exemplaar van elk onderdeelnummer.
