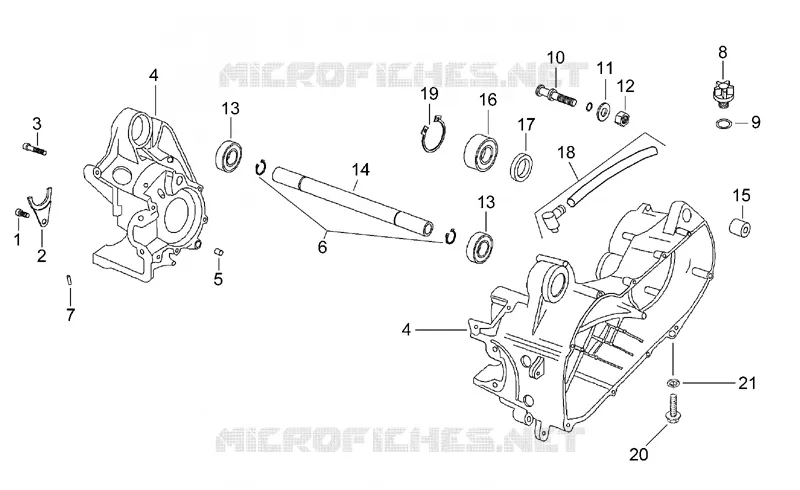

Central crank-case set
1
2
3
4
4
5
6
7
8
9
10
11
12
13
13
14
15
16
17
18
19
20
21
1
Screw M6x12
AP8206202
Niet beschikbaar
2
Oil seal retainer plate
AP8206138
Niet beschikbaar
3
Screw M6x35
AP8502567
Niet beschikbaar
4
Crankcase assy
AP8206468
Niet beschikbaar
4
Case w b. hngr-pair
AP8206695
Niet beschikbaar
5
Crankcase pin D12x16
AP8206169
Niet beschikbaar
6
Outside circlip D17
AP8206233
Niet beschikbaar
7
Roller D3x11,8
AP8206578
Niet beschikbaar
8
Oil filler plug
AP8206475
Niet beschikbaar
9
O-ring D13,3x2,4
AP8206482
Niet beschikbaar
10
Brake shoe pin
AP8206171
Niet beschikbaar
11
Spring washer D10x21x2
AP8502471
3,00€ Stukprijs incl. btw
12
Nut M10x1,25
AP8206490
Niet beschikbaar
13
Sealed bearing D17x35x10
AP8206481
Niet beschikbaar
14
Spacer D12x17x227
AP8206503
Niet beschikbaar
15
Silent-block, crankcase
AP8206129
Niet beschikbaar
16
Bearing D17x40x12
AP8206558
Niet beschikbaar
17
Oil seal
AP8206215
Niet beschikbaar
18
Union+Breather pipe 10x14x210
AP8206131
Niet beschikbaar
19
Inside circlip D40
AP8501481
Niet beschikbaar
20
Screw w/ flange M8x15
AP8206203
Niet beschikbaar
21
Gasket 8,2x15x1,2
AP8206488
Niet beschikbaar
