door

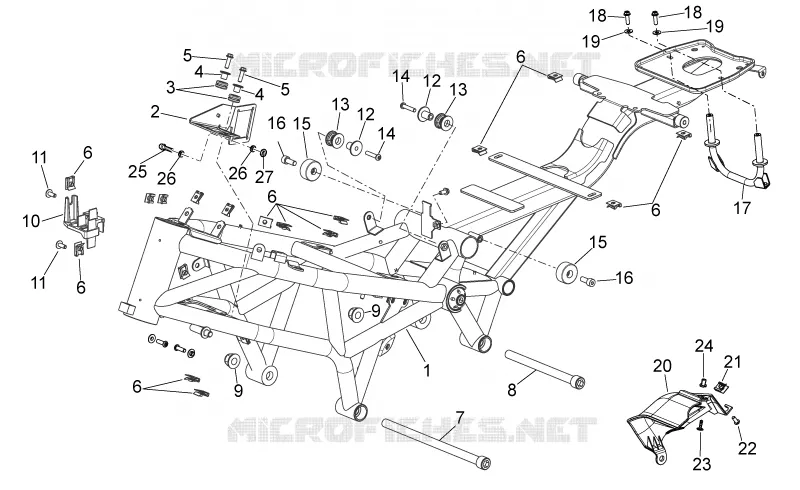

Frame
1
2
3
4
4
5
5
6
6
6
6
6
6
7
8
9
9
10
11
11
12
12
13
13
14
14
15
15
16
16
17
18
18
19
19
20
21
22
23
24
25
26
26
27
1
Frame
85181300XE6
Niet beschikbaar
1
Frame
86011300XE6
Niet beschikbaar
2
Coil support plate
852772
34,26€ Stukprijs incl. btw
3
Rubber spacer
AP8120030
3,29€ Stukprijs incl. btw
4
T bush
AP8221023
3,49€ Stukprijs incl. btw
5
Screw w/ flange M6x20
AP8152279
3,74€ Stukprijs incl. btw
6
Spring plate M6
254485
3,55€ Stukprijs incl. btw
7
Engine pin
851815
34,08€ Stukprijs incl. btw
8
Engine pin
851816
34,08€ Stukprijs incl. btw
9
DAX flange nut M14x1,5
AP8152244
5,52€ Stukprijs incl. btw
10
Relais support
851817
19,99€ Stukprijs incl. btw
11
Screw w/ flange M6x16
AP8152246
6,04€ Stukprijs incl. btw
12
Spacer
AP8161196
20,00€ Stukprijs incl. btw
13
Rubber exhaust
AP8120948
22,70€ Stukprijs incl. btw
14
Hex socket screw M6x30
AP8152128
3,74€ Stukprijs incl. btw
15
Rubber spacer *
AP8201124
9,86€ Stukprijs incl. btw
16
Hex socket screw M8x20
AP8150169
3,53€ Stukprijs incl. btw
17
Number plate holder support
851939
144,40€ Stukprijs incl. btw
18
Screw w/ flange M6x20
AP8152279
3,74€ Stukprijs incl. btw
19
Washer 6,4x15x1
AP8152181
2,04€ Stukprijs incl. btw
20
Fuel tank cover
851869
25,99€ Stukprijs incl. btw
20
Fuel tank cover
890268
24,90€ Stukprijs incl. btw
21
Clip M5
AP8102375
4,09€ Stukprijs incl. btw
22
Screw w/ flange M5x16
AP8152298
5,33€ Stukprijs incl. btw
23
Rivet, female
AP8144616
5,38€ Stukprijs incl. btw
24
Rivet, male
AP8144563
5,17€ Stukprijs incl. btw
25
Hex socket screw M4x25
859748
4,31€ Stukprijs incl. btw
26
Washer 4,3X9X0,8
AP8150158
3,07€ Stukprijs incl. btw
27
Nut M4
AP8150204
3,74€ Stukprijs incl. btw
De schema's zijn uitsluitend ter informatie. Bij twijfel staan onze specialisten klaar om uw vragen te beantwoorden. Let er bij het toevoegen van een onderdeel aan uw winkelwagen op dat u de gewenste hoeveelheid selecteert. De vermelde stukprijs geldt voor één exemplaar van elk onderdeelnummer.
