door

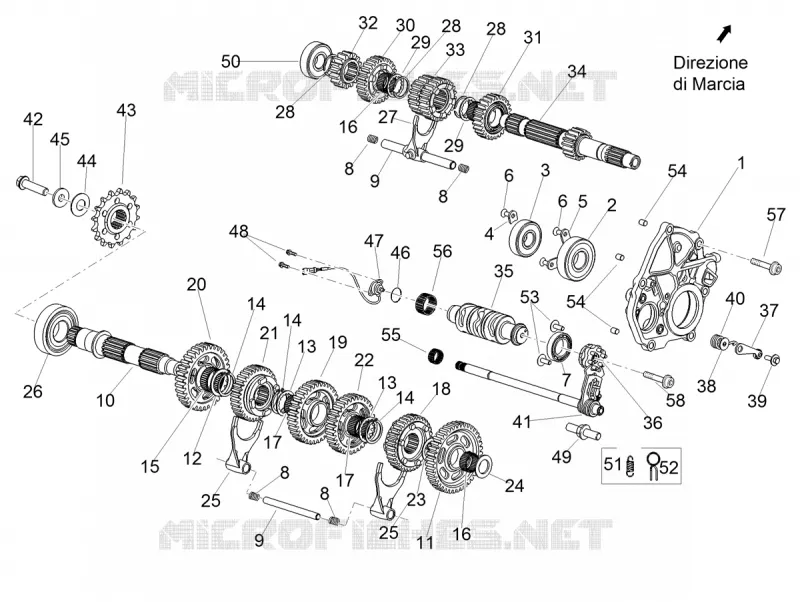

VERSNELLINGSBAK
1
1
2
3
4
5
6
6
7
8
8
8
8
9
9
10
11
12
13
13
14
14
14
15
16
16
17
17
18
19
20
21
22
23
24
25
25
26
27
28
28
28
29
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
54
55
56
57
58
1
Trasmission support
2A000436
133,78€ Stukprijs incl. btw
2
Ball bearing 25x62x17
898634
19,96€ Stukprijs incl. btw
3
Ball bearing 20x52x15
898635
16,91€ Stukprijs incl. btw
4
Check bearing plate
AP9150145
44,94€ Stukprijs incl. btw
5
Check bearing plate
857271
16,24€ Stukprijs incl. btw
6
Vis M6X16
1A011261
5,63€ Stukprijs incl. btw
7
Ball bearing 25x42x9
857250
14,00€ Stukprijs incl. btw
8
Spring
857175
10,26€ Stukprijs incl. btw
9
Fork shaft
2A000440
44,11€ Stukprijs incl. btw
10
Driven shaft
857236
396,56€ Stukprijs incl. btw
11
1st wheel gear Z=39
2A000879
278,75€ Stukprijs incl. btw
12
Washer 30x40x1,5
857308
18,42€ Stukprijs incl. btw
13
Clearance washer
857247
23,21€ Stukprijs incl. btw
14
Circlip D30
857248
7,28€ Stukprijs incl. btw
15
Roller cage 30x35x13
857309
108,28€ Stukprijs incl. btw
16
Roller cage 24x28x13
857233
106,62€ Stukprijs incl. btw
17
Roller cage 26x30x15,6
857244
106,62€ Stukprijs incl. btw
18
5th GEAR
2A000890
276,47€ Stukprijs incl. btw
19
3rd gear on the sec. Z=34
2A000285
193,08€ Stukprijs incl. btw
20
2nd gear on the sec. Z=33
2A000284
207,34€ Stukprijs incl. btw
21
6th wheel gear Z=33
857242
288,02€ Stukprijs incl. btw
22
4th gear on the sec. Z=31
2A000286
194,33€ Stukprijs incl. btw
23
Washer 24x35x1
857246
18,42€ Stukprijs incl. btw
24
Washer 20,1x33,5x2,5
857245
16,67€ Stukprijs incl. btw
25
Fork
2A000558
231,72€ Stukprijs incl. btw
26
Ball bearing 30X72X19
898633
28,37€ Stukprijs incl. btw
27
Fork
2A000453R
294,64€ Stukprijs incl. btw
28
Washer for shafts
857232
7,28€ Stukprijs incl. btw
29
Clearance washer
857234
23,21€ Stukprijs incl. btw
30
6th pinion gear Z=27
857231
197,23€ Stukprijs incl. btw
31
5th pinion gear Z=26
857230
197,23€ Stukprijs incl. btw
32
2nd gear on the sec. Z=16
2A000278
97,55€ Stukprijs incl. btw
33
3rd-4th pinion gear Z=20/21
2A000554
432,48€ Stukprijs incl. btw
34
Primary gear shaft
2A000552
476,58€ Stukprijs incl. btw
35
Shift cam
857251
278,52€ Stukprijs incl. btw
36
Index washer
857123
Niet beschikbaar
37
Index assy. lever
857274
48,25€ Stukprijs incl. btw
38
Washer D6,3x18x1
AP9150051
6,92€ Stukprijs incl. btw
39
Screw w/ flange M6x15
AP9150006
15,79€ Stukprijs incl. btw
40
Spring
2A000048
9,59€ Stukprijs incl. btw
41
Gear shaft+spring cpl.
857253
145,24€ Stukprijs incl. btw
42
Screw w/ flange M10x35
AP8152318
5,52€ Stukprijs incl. btw
43
Pinion Z=16
890827
77,76€ Stukprijs incl. btw
44
Belleville spring
854909
4,09€ Stukprijs incl. btw
45
T bush
854951
13,37€ Stukprijs incl. btw
46
O-ring
857494
10,46€ Stukprijs incl. btw
47
Gear position sensor
2D000300
Niet beschikbaar
48
Screw w/ flange M5x15
AP8152273
3,74€ Stukprijs incl. btw
49
Threaded pin
899599
16,50€ Stukprijs incl. btw
50
Ball bearing 20x52x15
898636
18,06€ Stukprijs incl. btw
51
Fasten spring
857260
22,62€ Stukprijs incl. btw
52
Spring
2A000047
13,16€ Stukprijs incl. btw
53
Hex socket screw M6x16 inox
GU98370616
4,48€ Stukprijs incl. btw
54
Pin M8x12
857427
4,12€ Stukprijs incl. btw
55
12x8x12 roller bearing
B045224
10,01€ Stukprijs incl. btw
56
Roller cage HK1512
857249
35,48€ Stukprijs incl. btw
57
Screw w/ flange M8x25
AP8152287
4,64€ Stukprijs incl. btw
58
Vis TCEI M6x20
1A011247
5,63€ Stukprijs incl. btw
De schema's zijn uitsluitend ter informatie. Bij twijfel staan onze specialisten klaar om uw vragen te beantwoorden. Let er bij het toevoegen van een onderdeel aan uw winkelwagen op dat u de gewenste hoeveelheid selecteert. De vermelde stukprijs geldt voor één exemplaar van elk onderdeelnummer.
