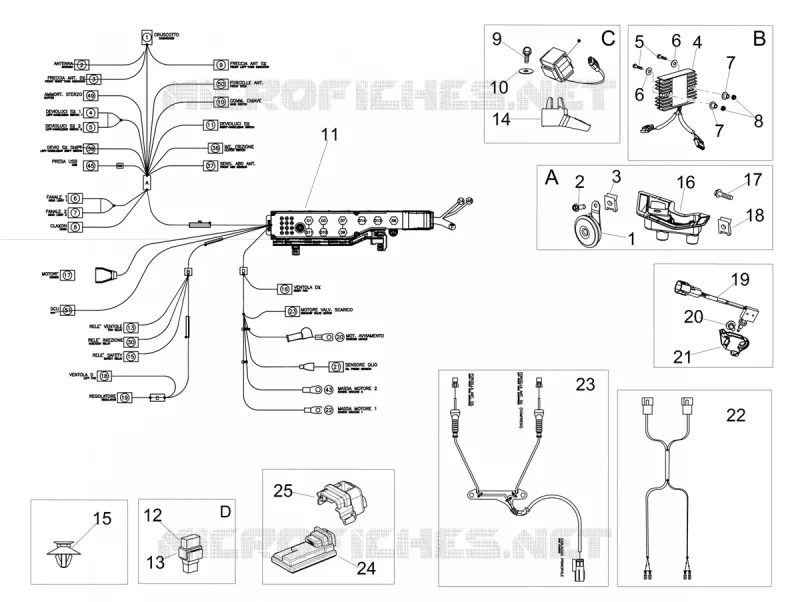

Electrical system I
25
1
2
3
4
5
6
6
7
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
1
Horn
890979
71,36€ Stukprijs incl. btw
2
Screw w/ flange M6x12
AP8152277
3,74€ Stukprijs incl. btw
3
Spring plate M6
254485
3,55€ Stukprijs incl. btw
4
Voltage regulator
B043488
374,74€ Stukprijs incl. btw
5
Hex socket screw M6x30
AP8152128
3,74€ Stukprijs incl. btw
6
Washer 6,6x18*
AP8150179
3,07€ Stukprijs incl. btw
7
T bush *
AP8121075
3,94€ Stukprijs incl. btw
8
Self-locking nut M6
AP8152299
3,74€ Stukprijs incl. btw
9
Screw w/ flange M6x20
AP8152279
3,74€ Stukprijs incl. btw
10
Bush
AP8121991
5,52€ Stukprijs incl. btw
11
Câblage principal
2D000475
1 051,20€ Stukprijs incl. btw
12
Relay 12V-30A
AP8224462
26,47€ Stukprijs incl. btw
13
Rubber spacer *
AP8220283
4,43€ Stukprijs incl. btw
14
Sensor support
858916
14,09€ Stukprijs incl. btw
15
Instrument support
890760
18,67€ Stukprijs incl. btw
16
Horn support
2B001765
14,82€ Stukprijs incl. btw
17
Hex socket screw M5x9
AP8150500
4,09€ Stukprijs incl. btw
18
Clip M5
AP8102375
4,09€ Stukprijs incl. btw
19
Stop switch
2D000325
67,87€ Stukprijs incl. btw
20
Hex socket screw M5x9
AP8150500
4,09€ Stukprijs incl. btw
21
Maintenance switch
2B003519
6,55€ Stukprijs incl. btw
22
Turn ind.harness
2D000178
18,25€ Stukprijs incl. btw
23
FORK WIRING
2D000476
61,02€ Stukprijs incl. btw
24
Centrale ASC
2D0004799
Niet beschikbaar
25
Couvercle de centrale
2B005646
14,00€ Stukprijs incl. btw
De schema's zijn uitsluitend ter informatie. Bij twijfel staan onze specialisten klaar om uw vragen te beantwoorden. Let er bij het toevoegen van een onderdeel aan uw winkelwagen op dat u de gewenste hoeveelheid selecteert. De vermelde stukprijs geldt voor één exemplaar van elk onderdeelnummer.
