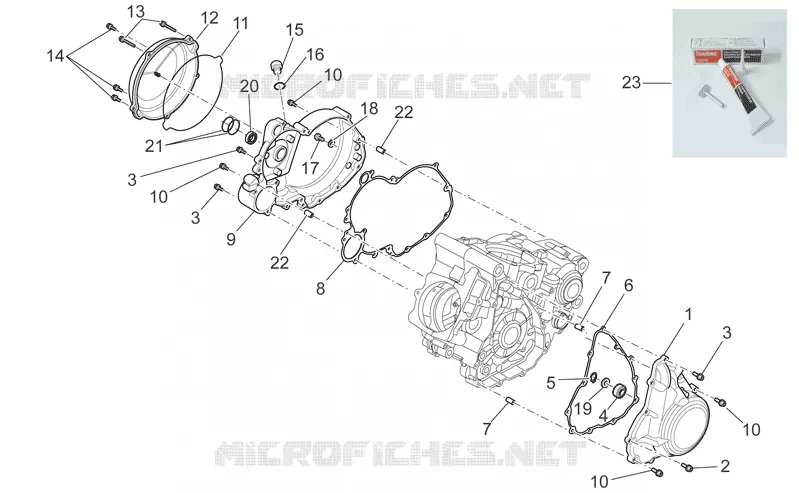

Crankcase II
1
2
3
3
3
4
5
6
7
7
8
9
10
10
10
10
11
12
13
14
15
16
17
18
19
20
21
22
22
23
1
Ignition cover
AP9150152
Niet beschikbaar
2
Screw w/ flange M6x20
AP8152279
3,74€ Stukprijs incl. btw
2
Screw w/ flange M6x20 titan
853600
Niet beschikbaar
3
Screw w/ flange M6x25
AP8152280
4,46€ Stukprijs incl. btw
3
Screw w/ flange M6x25 titan
853598
Niet beschikbaar
4
Oil seal D12x22x5,5
851315
Niet beschikbaar
5
Circlip D25
AP9150524
34,81€ Stukprijs incl. btw
6
Gasket
AP9150153
20,28€ Stukprijs incl. btw
7
Bush D6,2x8X15
AP9150118
Niet beschikbaar
8
Gasket
AP9150148
16,03€ Stukprijs incl. btw
9
Clutch side cover
851019
Niet beschikbaar
10
Screw w/ flange M6x35
AP8152282
3,07€ Stukprijs incl. btw
10
Screw w/ flange
853717
Niet beschikbaar
11
O-ring D171,13x2,62
AP9150150
Niet beschikbaar
12
Complete clutch cover
AP9150094
38,17€ Stukprijs incl. btw
13
Screw w/ flange M6x60 titan
853596
Niet beschikbaar
13
Screw w/ flange M6x60
AP9150395
9,47€ Stukprijs incl. btw
14
Screw w/ flange M6x16 titan
853595
Niet beschikbaar
14
Screw w/ flange M6x16
AP8152278
3,74€ Stukprijs incl. btw
15
Oil plug M20x1,5
AP9150410
12,46€ Stukprijs incl. btw
15
Oil plug M20x1,5
853673
Niet beschikbaar
16
O-ring D18,72x2,62
AP9150356
2,18€ Stukprijs incl. btw
17
Hex socket screw M6x10
AP9150473
9,80€ Stukprijs incl. btw
18
Seal washer D6x12x1
AP9150351
3,07€ Stukprijs incl. btw
19
Oil seal cup
AP9150522
Niet beschikbaar
20
Ball bearing 10x19x5
851015
Niet beschikbaar
21
O-ring 20x1
851012
Niet beschikbaar
22
Bush D6,2x7,8X15
851017
17,11€ Stukprijs incl. btw
23
Sealing compound
855252
Niet beschikbaar
De schema's zijn uitsluitend ter informatie. Bij twijfel staan onze specialisten klaar om uw vragen te beantwoorden. Let er bij het toevoegen van een onderdeel aan uw winkelwagen op dat u de gewenste hoeveelheid selecteert. De vermelde stukprijs geldt voor één exemplaar van elk onderdeelnummer.
