door

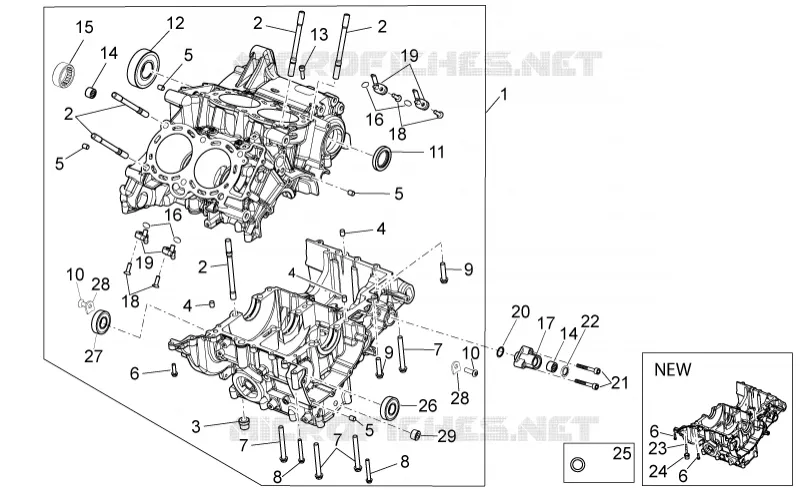

Crank-case I
1
2
2
2
2
3
4
4
4
5
5
5
5
6
6
6
7
7
7
8
8
9
9
10
10
11
12
13
14
14
15
16
16
17
18
18
19
19
20
21
22
23
24
25
26
27
28
28
29
1
Carter, pair
B0438525
Niet beschikbaar
2
Stud bolt m10x126
857087
Niet beschikbaar
3
Flanged nut M10x1
897434
16,14€ Stukprijs incl. btw
4
Pin M8x12
857427
4,12€ Stukprijs incl. btw
5
Pin
411209
6,88€ Stukprijs incl. btw
6
Screw w/ flange M6x25
AP8152280
4,46€ Stukprijs incl. btw
7
Screw w/ flange
AP8152294
3,74€ Stukprijs incl. btw
8
Screw w/ flange
AP8152284
3,74€ Stukprijs incl. btw
9
Screw w/ flange
AP8152289
3,07€ Stukprijs incl. btw
10
screw M6x16
AP8152166
6,04€ Stukprijs incl. btw
11
Gasket ring 30x47x7
857128
44,06€ Stukprijs incl. btw
12
Ball bearing 30X72X19
898633
28,37€ Stukprijs incl. btw
13
Hex socket screw M6x20
AP8150044
3,07€ Stukprijs incl. btw
14
Roller cage 12X18X12
857312
Niet beschikbaar
15
Roller cage HK1512
857249
35,48€ Stukprijs incl. btw
16
O-ring 6x1
GU90706009
4,48€ Stukprijs incl. btw
17
Maintenance
857090
123,55€ Stukprijs incl. btw
18
Special cap screw M5x16
857140
7,46€ Stukprijs incl. btw
18
Screw TB 4X12 TORX
B046202
2,40€ Stukprijs incl. btw
19
Piston oil jet
857139
Niet beschikbaar
19
Piston cooling jet
B045360
45,23€ Stukprijs incl. btw
20
Gasket ring 17,12X2,62
857109
7,46€ Stukprijs incl. btw
21
Hex socket screw M6x35
AP8150285
3,94€ Stukprijs incl. btw
22
Gasket ring 12x22
857127
Niet beschikbaar
23
Stud bolt
857495
15,25€ Stukprijs incl. btw
24
Special nut
857496
15,60€ Stukprijs incl. btw
25
O-ring
857144
2,62€ Stukprijs incl. btw
26
Bearing
897435
15,72€ Stukprijs incl. btw
27
Bearing
897436
20,11€ Stukprijs incl. btw
28
Check bearing plate
AP9150145
44,94€ Stukprijs incl. btw
29
Plug M16X1,5
974060
7,86€ Stukprijs incl. btw
De schema's zijn uitsluitend ter informatie. Bij twijfel staan onze specialisten klaar om uw vragen te beantwoorden. Let er bij het toevoegen van een onderdeel aan uw winkelwagen op dat u de gewenste hoeveelheid selecteert. De vermelde stukprijs geldt voor één exemplaar van elk onderdeelnummer.
