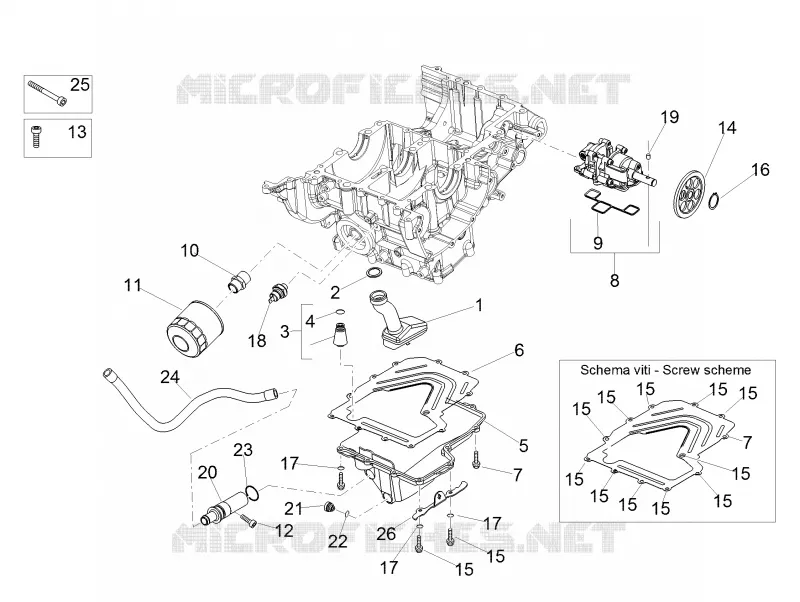

Lubrication
26
25
24
23
22
21
20
19
18
17
17
17
16
15
15
15
15
15
15
15
15
15
15
15
15
15
14
13
12
11
10
9
8
7
7
6
5
4
3
2
1
1
Oil strainer
857502
133,88€ Stukprijs incl. btw
2
Or packing 24x2,5 - 80 FKM
B046072
10,03€ Stukprijs incl. btw
3
Oil valve cpl.
857540
Niet beschikbaar
4
O-ring
857176
4,00€ Stukprijs incl. btw
5
Motor oil cup
8997555
Niet beschikbaar
6
Gasket new type
857497
46,98€ Stukprijs incl. btw
7
Hex socket screw M6x25
840893
2,56€ Stukprijs incl. btw
8
Oil pump
2A000539
274,00€ Stukprijs incl. btw
9
O-ring
857189
17,26€ Stukprijs incl. btw
10
Oil filter union
857168
18,08€ Stukprijs incl. btw
11
Oil filter
857187
Niet beschikbaar
12
Hex socket screw M6x20
AP8150044
3,07€ Stukprijs incl. btw
13
Hex socket screw M6x16
709099
1,92€ Stukprijs incl. btw
14
Pump gear
85273R
143,57€ Stukprijs incl. btw
15
Screw w/ flange M6x30
289731
Niet beschikbaar
16
Circlip
006412
3,07€ Stukprijs incl. btw
17
Spring washer 6,4x11x0,5*
AP8150429
Niet beschikbaar
18
Minimum oil pressure sensor
1D001138
Niet beschikbaar
19
Roller 5X19,8
857192
9,71€ Stukprijs incl. btw
20
Oil hose union
857439
53,78€ Stukprijs incl. btw
21
Cover
857184
8,14€ Stukprijs incl. btw
22
Gasket OR
857147
4,48€ Stukprijs incl. btw
23
O-ring 121
AP8144012
4,64€ Stukprijs incl. btw
24
Oil pipe 12x19
AP8106389
Niet beschikbaar
25
Hex socket screw
277330
2,72€ Stukprijs incl. btw
26
Fixing bracket
2B003992
21,94€ Stukprijs incl. btw
De schema's zijn uitsluitend ter informatie. Bij twijfel staan onze specialisten klaar om uw vragen te beantwoorden. Let er bij het toevoegen van een onderdeel aan uw winkelwagen op dat u de gewenste hoeveelheid selecteert. De vermelde stukprijs geldt voor één exemplaar van elk onderdeelnummer.
