door

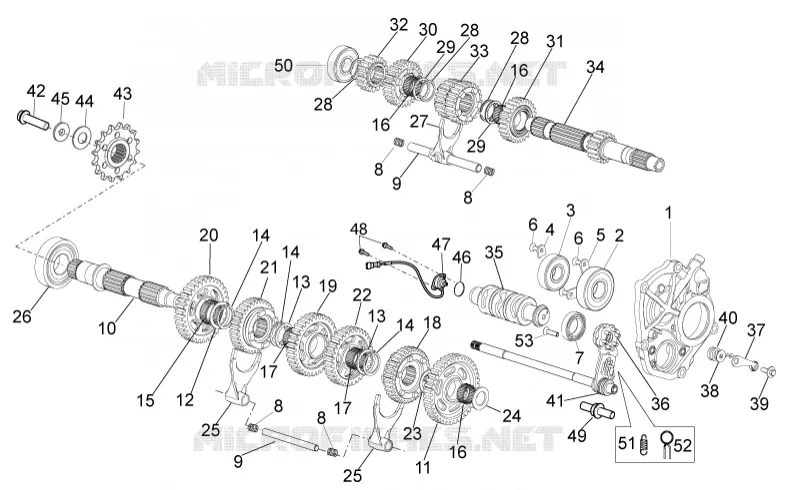

Gear box
53
52
51
50
49
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
32
31
30
29
29
28
28
28
27
26
25
25
24
23
22
21
20
19
18
17
17
16
16
16
15
14
14
14
13
13
12
11
10
9
9
8
8
8
8
7
6
6
5
4
3
2
1
1
Trasmission support
2A000069
521,62€ Stukprijs incl. btw
2
Ball bearing 25x62x17
898634
19,96€ Stukprijs incl. btw
3
Ball bearing 20x52x15
898635
16,91€ Stukprijs incl. btw
4
Check bearing plate
AP9150145
44,94€ Stukprijs incl. btw
5
Check bearing plate
857271
16,24€ Stukprijs incl. btw
6
screw M6x16
AP8152166
6,04€ Stukprijs incl. btw
7
Ball bearing 25x42x9
857250
14,00€ Stukprijs incl. btw
8
Spring
857175
10,26€ Stukprijs incl. btw
9
Fork shaft
857284
101,15€ Stukprijs incl. btw
10
Driven shaft
857236
396,56€ Stukprijs incl. btw
11
1st GEAR
2A000889
179,96€ Stukprijs incl. btw
12
Washer 30x40x1,5
857308
18,42€ Stukprijs incl. btw
13
Clearance washer
857247
23,21€ Stukprijs incl. btw
14
Circlip D30
857248
7,28€ Stukprijs incl. btw
15
Roller cage 30x35x13
857309
108,28€ Stukprijs incl. btw
16
Roller cage 24x28x13
857233
106,62€ Stukprijs incl. btw
17
Roller cage 26x30x15,6
857244
106,62€ Stukprijs incl. btw
18
5th GEAR
2A000890
276,47€ Stukprijs incl. btw
19
3rd wheel gear Z=34
857239
173,50€ Stukprijs incl. btw
20
2nd wheel gear Z=33
857238
217,22€ Stukprijs incl. btw
21
6th wheel gear Z=33
857242
288,02€ Stukprijs incl. btw
22
4th wheel gear Z=32
857240
197,23€ Stukprijs incl. btw
23
Washer 24x35x1
857246
18,42€ Stukprijs incl. btw
24
Washer 20,1x33,5x2,5
857245
16,67€ Stukprijs incl. btw
25
Fork
85253R
149,57€ Stukprijs incl. btw
26
Ball bearing 30X72X19
898633
28,37€ Stukprijs incl. btw
27
Fork
85252R
197,03€ Stukprijs incl. btw
28
Washer for shafts
857232
7,28€ Stukprijs incl. btw
29
Clearance washer
857234
23,21€ Stukprijs incl. btw
30
6th pinion gear Z=27
857231
197,23€ Stukprijs incl. btw
31
5th pinion gear Z=26
857230
197,23€ Stukprijs incl. btw
32
2nd pinion gear Z=16
857459
108,90€ Stukprijs incl. btw
33
3rd-4th pinion gear Z=20/Z=22
857229
358,38€ Stukprijs incl. btw
34
Primary gear shaft
857458
476,58€ Stukprijs incl. btw
35
Shift cam
857251
278,52€ Stukprijs incl. btw
36
Index washer
857123
Niet beschikbaar
37
Index assy. lever
857274
48,25€ Stukprijs incl. btw
38
Washer D6,3x18x1
AP9150051
6,92€ Stukprijs incl. btw
39
Screw w/ flange M6x15
AP9150006
15,79€ Stukprijs incl. btw
40
Spring
2A000048
9,59€ Stukprijs incl. btw
41
Gear shaft+spring cpl.
857253
145,24€ Stukprijs incl. btw
42
Screw w/ flange M10x35
AP8152318
5,52€ Stukprijs incl. btw
43
Pinion Z=15
2B001710
75,90€ Stukprijs incl. btw
44
Belleville spring
854909
4,09€ Stukprijs incl. btw
45
T bush
854951
13,37€ Stukprijs incl. btw
46
O-ring
857494
10,46€ Stukprijs incl. btw
47
Gear position sensor
2D000300
Niet beschikbaar
48
Screw w/ flange M5x15
AP8152273
3,74€ Stukprijs incl. btw
49
Threaded pin
899599
16,50€ Stukprijs incl. btw
50
Ball bearing 20x52x15
898636
18,06€ Stukprijs incl. btw
51
Fasten spring
857260
22,62€ Stukprijs incl. btw
52
Spring
2A000047
13,16€ Stukprijs incl. btw
53
Hex socket screw M6x16 inox
GU98370616
4,48€ Stukprijs incl. btw
