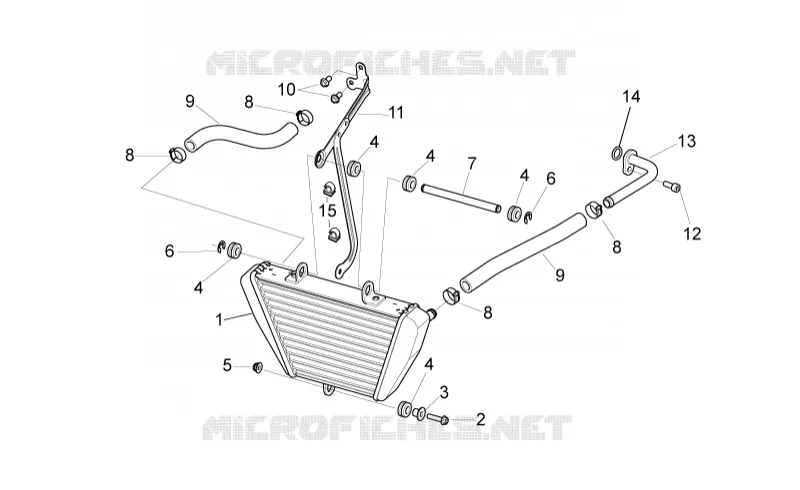

Oil cooler
15
14
13
12
11
10
9
9
8
8
8
8
7
6
6
5
4
4
4
4
4
3
2
1
1
Oil cooler
2B000897
681,35€ Stukprijs incl. btw
2
Screw w/ flange M6x25
AP8152280
4,46€ Stukprijs incl. btw
3
T bush
AP8221023
3,49€ Stukprijs incl. btw
4
Rubber spacer
AP8120030
3,29€ Stukprijs incl. btw
5
Self-locking nut M6
AP8152299
3,74€ Stukprijs incl. btw
6
Circlip d8
AP8121428
4,64€ Stukprijs incl. btw
7
Spacer
858927
19,14€ Stukprijs incl. btw
8
White hose clip D17,5x8
AP8102349
12,89€ Stukprijs incl. btw
9
Oil pipe 12x19
AP8106389
Niet beschikbaar
10
Screw w/ flange M6x12
AP8152277
3,74€ Stukprijs incl. btw
11
Radiator support bracket
2B001478
25,31€ Stukprijs incl. btw
12
Hex socket screw M6x16
AP8150137
3,06€ Stukprijs incl. btw
13
Pipe
858489
59,93€ Stukprijs incl. btw
14
O-ring 115
AP8144008
4,64€ Stukprijs incl. btw
15
Black cable guide
AP8201727
3,12€ Stukprijs incl. btw
De schema's zijn uitsluitend ter informatie. Bij twijfel staan onze specialisten klaar om uw vragen te beantwoorden. Let er bij het toevoegen van een onderdeel aan uw winkelwagen op dat u de gewenste hoeveelheid selecteert. De vermelde stukprijs geldt voor één exemplaar van elk onderdeelnummer.
