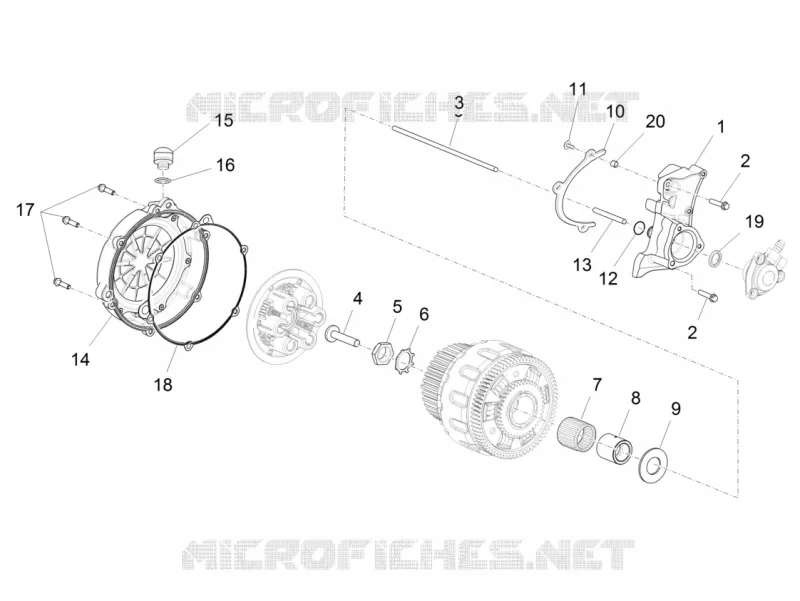

Clutch cover
1
2
2
3
4
5
6
7
8
9
10
11
13
14
15
16
17
18
19
20
1
Clutch disengagement flange BLACK
B013074
102,29€ Stukprijs incl. btw
2
Screw w/ flange
872421
3,01€ Stukprijs incl. btw
3
Clutch shaft
874660
54,80€ Stukprijs incl. btw
4
Rod
B015050
42,49€ Stukprijs incl. btw
5
Nut
877424
16,80€ Stukprijs incl. btw
6
Safety washer
876296
10,13€ Stukprijs incl. btw
7
Roller cage 35X40X35,8
974361
28,28€ Stukprijs incl. btw
8
Spacer
873543
24,29€ Stukprijs incl. btw
9
Washer
974320
8,35€ Stukprijs incl. btw
10
Chain protection tin plate
877193
10,21€ Stukprijs incl. btw
11
screw TSPEI M5x20
658778
4,38€ Stukprijs incl. btw
12
0
871609
7,46€ Stukprijs incl. btw
13
Pawl clutch
874191
12,41€ Stukprijs incl. btw
14
Clutch cover
1A003074
66,17€ Stukprijs incl. btw
15
Oil plug M20x1,5
AP9150410
12,46€ Stukprijs incl. btw
16
O-ring D18,72x2,62
AP9150356
2,18€ Stukprijs incl. btw
17
screw M6x35
414838
3,07€ Stukprijs incl. btw
18
Clutch crancase gasket
B013607
17,20€ Stukprijs incl. btw
19
Gasket ring 8x16x7
825577
8,56€ Stukprijs incl. btw
20
Spacer
877195
9,47€ Stukprijs incl. btw
De schema's zijn uitsluitend ter informatie. Bij twijfel staan onze specialisten klaar om uw vragen te beantwoorden. Let er bij het toevoegen van een onderdeel aan uw winkelwagen op dat u de gewenste hoeveelheid selecteert. De vermelde stukprijs geldt voor één exemplaar van elk onderdeelnummer.
