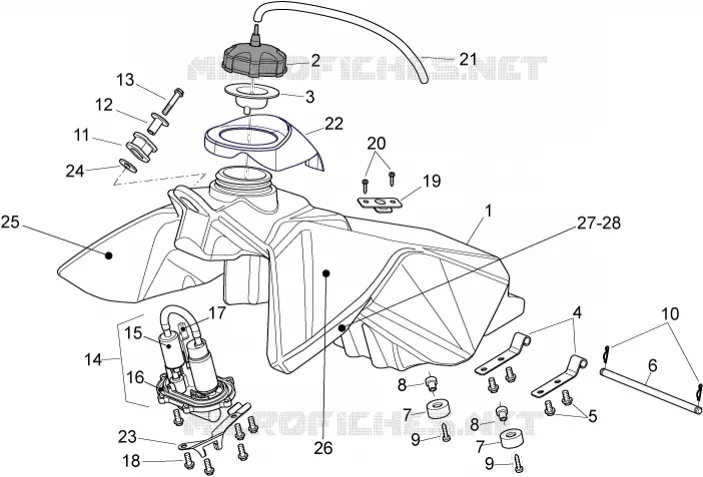

Fuel tank
1
2
3
4
5
6
7
7
8
8
9
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
1
Fuel tank
855846
Niet beschikbaar
2
Cover
AP8220620
Niet beschikbaar
3
Gasket
856932
42,89€ Stukprijs incl. btw
4
Plate
AP9100080
12,54€ Stukprijs incl. btw
5
Screw w/ flange M6x12
AP8152277
3,74€ Stukprijs incl. btw
6
Pin
AP9100078
11,11€ Stukprijs incl. btw
7
Rubber spacer 26x12,2
AP9100767
12,54€ Stukprijs incl. btw
8
T bush
AP8121811
3,07€ Stukprijs incl. btw
9
Hex socket screw
AP8150521
3,74€ Stukprijs incl. btw
10
Split pin *
AP8201431
5,18€ Stukprijs incl. btw
11
Pad
AP9100082
12,68€ Stukprijs incl. btw
12
Bush
AP9100081
9,12€ Stukprijs incl. btw
13
Screw w/ flange M6x30
AP8152281
3,74€ Stukprijs incl. btw
14
Fuel pump cpl.
AP9100416
Niet beschikbaar
15
Fuel filter
AP9100930
82,69€ Stukprijs incl. btw
16
Gasket
AP9100931
139,64€ Stukprijs incl. btw
17
Thermistor
GU01103090
116,03€ Stukprijs incl. btw
18
Screw w/ flange M5x15
AP8152273
3,74€ Stukprijs incl. btw
19
plate
AP9100415
12,68€ Stukprijs incl. btw
20
Self-tap screw 3,9x14
AP8150413
3,43€ Stukprijs incl. btw
21
pipe 5x9
AP8220402
31,60€ Stukprijs incl. btw
22
Fuel tank cover
AP9100967
11,87€ Stukprijs incl. btw
23
Plate
AP9100966
11,11€ Stukprijs incl. btw
24
Washer 24,8x6,2x1
AP9100375
Niet beschikbaar
25
Up.RH Fuel tank decal
894642
9,97€ Stukprijs incl. btw
26
Up.LH Fuel tank decal
894643
9,97€ Stukprijs incl. btw
27
Lo.RH Fuel tank decal
894674
12,11€ Stukprijs incl. btw
28
Lo.LH Fuel tank decal
894675
12,11€ Stukprijs incl. btw
De schema's zijn uitsluitend ter informatie. Bij twijfel staan onze specialisten klaar om uw vragen te beantwoorden. Let er bij het toevoegen van een onderdeel aan uw winkelwagen op dat u de gewenste hoeveelheid selecteert. De vermelde stukprijs geldt voor één exemplaar van elk onderdeelnummer.
