door

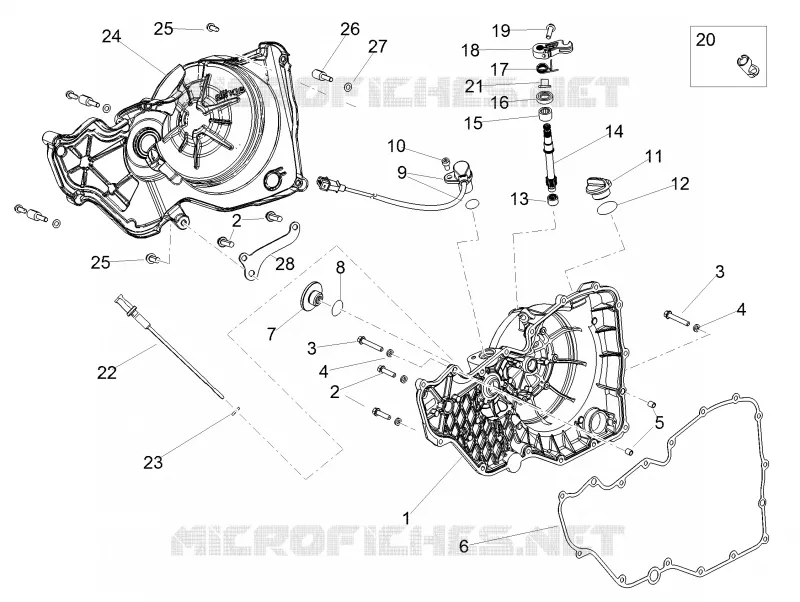

Deksel van de koppeling
28
28
27
27
26
26
25
25
25
25
24
23
23
22
22
21
20
19
18
17
17
16
15
14
13
13
12
12
11
11
10
9
8
7
6
5
4
4
3
3
2
2
2
1
1
1
Clutch cover
1A007273
367,45€ Stukprijs incl. btw
2
Screw w/ flange
857429
4,46€ Stukprijs incl. btw
3
Screw w/ flange
857436
4,48€ Stukprijs incl. btw
4
Spring washer 6,4x11x0,5*
AP8150429
Niet beschikbaar
5
Pin
411209
6,88€ Stukprijs incl. btw
6
Gasket
857451
90,71€ Stukprijs incl. btw
7
Inspection cover
857543
46,62€ Stukprijs incl. btw
8
O-ring
857078
7,03€ Stukprijs incl. btw
9
Encoder sensor
832029
Niet beschikbaar
10
Hex socket screw
122675
2,20€ Stukprijs incl. btw
11
Oil load plug
974229
14,17€ Stukprijs incl. btw
12
O-ring 4075
AP8144424
4,48€ Stukprijs incl. btw
13
Roller cage 10x14x10
B045225
6,06€ Stukprijs incl. btw
14
Clutch control spindle
2A000033R
247,16€ Stukprijs incl. btw
15
12x8x12 roller bearing
B045224
10,01€ Stukprijs incl. btw
16
Gasket ring 12x22
857127
Niet beschikbaar
17
Clutch lever return spring
857461
11,10€ Stukprijs incl. btw
18
Clutch control lever
857314
83,93€ Stukprijs incl. btw
19
Screw w/ flange M6x20
AP8152279
3,74€ Stukprijs incl. btw
20
Clutch control pin bushing
B043542
32,50€ Stukprijs incl. btw
21
T bush
857460
10,13€ Stukprijs incl. btw
22
Oil dipstick
2A000573
44,52€ Stukprijs incl. btw
23
O-ring 9x1.5
2A000632
2,18€ Stukprijs incl. btw
24
Cover soundproofing material
1A007414
109,31€ Stukprijs incl. btw
25
Screw w/ flange M6x16
874555
4,01€ Stukprijs incl. btw
26
Special screw
1A009050
6,59€ Stukprijs incl. btw
27
Curved spring washer 6x12
658830
3,84€ Stukprijs incl. btw
28
Bracket
1A006984
8,20€ Stukprijs incl. btw
De schema's zijn uitsluitend ter informatie. Bij twijfel staan onze specialisten klaar om uw vragen te beantwoorden. Let er bij het toevoegen van een onderdeel aan uw winkelwagen op dat u de gewenste hoeveelheid selecteert. De vermelde stukprijs geldt voor één exemplaar van elk onderdeelnummer.
