door

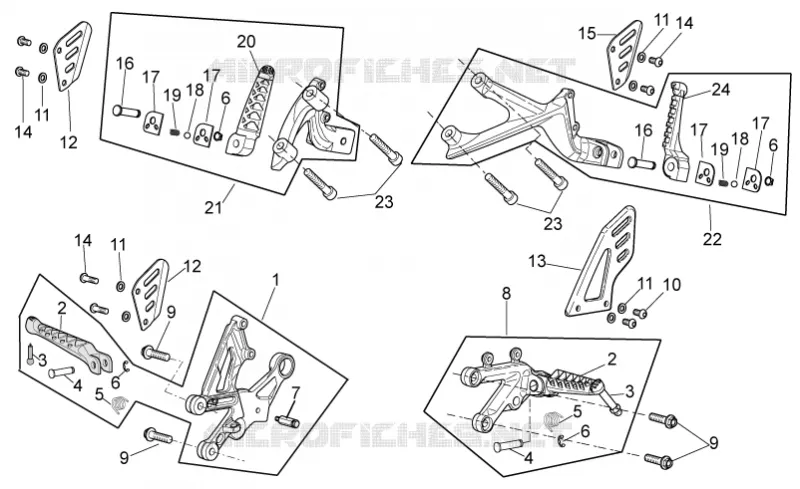

Foot rests
1
2
2
3
3
4
4
5
5
6
6
6
6
7
8
9
9
10
11
11
11
11
12
12
13
14
14
14
15
16
16
17
17
17
17
18
18
19
19
20
21
22
23
23
24
1
RH front footrest bracket
858786
83,40€ Stukprijs incl. btw
2
Front footrest, pair
AP8146862
Niet beschikbaar
3
Footrest pin
AP8134955
27,38€ Stukprijs incl. btw
4
Footrest pin
AP8121566
14,02€ Stukprijs incl. btw
5
Footrest return spring
AP8121224
6,30€ Stukprijs incl. btw
6
Stop ring
AP8152409
3,28€ Stukprijs incl. btw
7
Springs fixing pin
GU05677730
23,39€ Stukprijs incl. btw
8
LH front footrest bracket
AP8146502
Niet beschikbaar
9
Screw
AP8150540
12,96€ Stukprijs incl. btw
10
Hex socket screw M6x20
AP8224470
3,07€ Stukprijs incl. btw
11
Spring washer 6,4x11x0,5*
AP8150429
Niet beschikbaar
12
RH protection
858787
76,45€ Stukprijs incl. btw
13
LH protection
858788
76,45€ Stukprijs incl. btw
14
Hex socket screw M6x12
AP8150537
3,06€ Stukprijs incl. btw
15
LH rear footrest guard
894201
48,24€ Stukprijs incl. btw
16
Footrest pin
AP8134829
8,74€ Stukprijs incl. btw
17
Footrest plate
AP8134451
8,06€ Stukprijs incl. btw
18
Ball D6,35
AP8101861
2,18€ Stukprijs incl. btw
19
Coil compress. spring
AP8121133
5,17€ Stukprijs incl. btw
20
Rear footrest, RH
AP8146616
156,77€ Stukprijs incl. btw
21
Rear footrest, RH cpl
893996
408,64€ Stukprijs incl. btw
22
Rear footrest, LH
893997
408,64€ Stukprijs incl. btw
23
Hex socket screw M8x45
AP8150164
3,74€ Stukprijs incl. btw
24
Rear footrest, LH
AP8146617
156,77€ Stukprijs incl. btw
De schema's zijn uitsluitend ter informatie. Bij twijfel staan onze specialisten klaar om uw vragen te beantwoorden. Let er bij het toevoegen van een onderdeel aan uw winkelwagen op dat u de gewenste hoeveelheid selecteert. De vermelde stukprijs geldt voor één exemplaar van elk onderdeelnummer.
