door

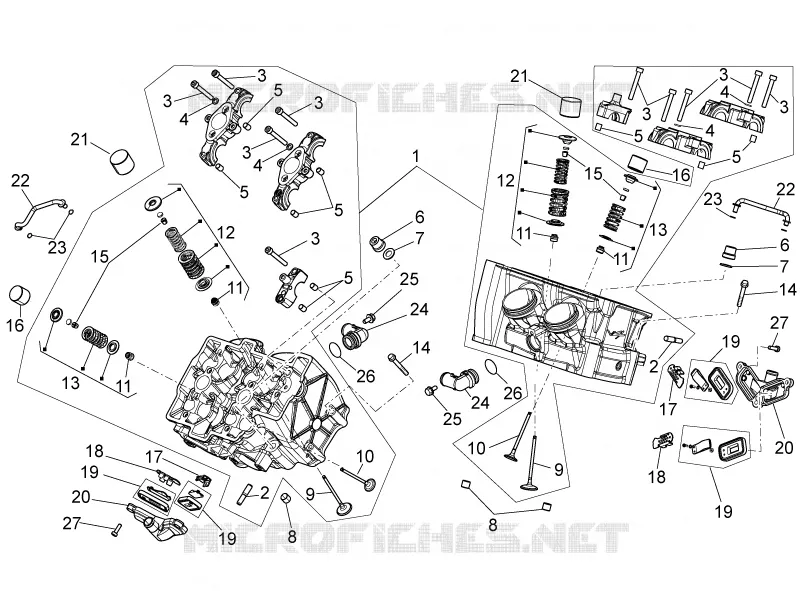

Cylinder head - valves
1
2
2
3
3
3
3
3
3
3
4
4
4
4
5
5
5
5
5
6
6
7
7
8
8
9
9
10
10
11
11
11
11
12
12
13
13
14
14
15
15
16
16
17
17
18
18
19
19
19
19
20
20
21
21
22
22
23
23
24
24
25
25
26
26
27
27
1
Cylinder head assy.
898402
Niet beschikbaar
2
Stud bolt m10x171
857035
10,13€ Stukprijs incl. btw
3
Hex socket screw M6x45
857085
Niet beschikbaar
4
Copper washer
857042
3,06€ Stukprijs incl. btw
5
Pin
411209
6,88€ Stukprijs incl. btw
6
Flanged nut M10x1
897434
16,14€ Stukprijs incl. btw
7
Washer 19 x 10,5 x 1,6
857208
7,28€ Stukprijs incl. btw
8
Pin 11,8X10
825597
4,27€ Stukprijs incl. btw
9
Intake valve 32 mm AISA
8570224
253,43€ Stukprijs incl. btw
10
Exhaust valve 26 mm
857023
Niet beschikbaar
11
Valve gasket ring
436438
12,07€ Stukprijs incl. btw
12
Intake valve spring kit
2R000041
38,75€ Stukprijs incl. btw
13
Exhaust valve spring kit
2R000042
34,73€ Stukprijs incl. btw
14
Screw w/ flange
478895
4,46€ Stukprijs incl. btw
15
Valve half-cone
857024
5,92€ Stukprijs incl. btw
16
Valve lifter bucket
857067
82,88€ Stukprijs incl. btw
17
Spark arrester
857046
12,23€ Stukprijs incl. btw
18
Spark arrester
857047
12,62€ Stukprijs incl. btw
19
Reed valve
857045
53,47€ Stukprijs incl. btw
20
Cover reed valve
857044
72,72€ Stukprijs incl. btw
21
Valve lifter bucket
857066
66,19€ Stukprijs incl. btw
22
Oil sprayer pipe
857017
67,49€ Stukprijs incl. btw
23
O-ring
224035
7,80€ Stukprijs incl. btw
24
Angular union
857016
Niet beschikbaar
25
Screw w/ flange M6x12
857082
4,37€ Stukprijs incl. btw
26
O-ring
857083
4,40€ Stukprijs incl. btw
27
screw M5x16
857048
4,48€ Stukprijs incl. btw
De schema's zijn uitsluitend ter informatie. Bij twijfel staan onze specialisten klaar om uw vragen te beantwoorden. Let er bij het toevoegen van een onderdeel aan uw winkelwagen op dat u de gewenste hoeveelheid selecteert. De vermelde stukprijs geldt voor één exemplaar van elk onderdeelnummer.
